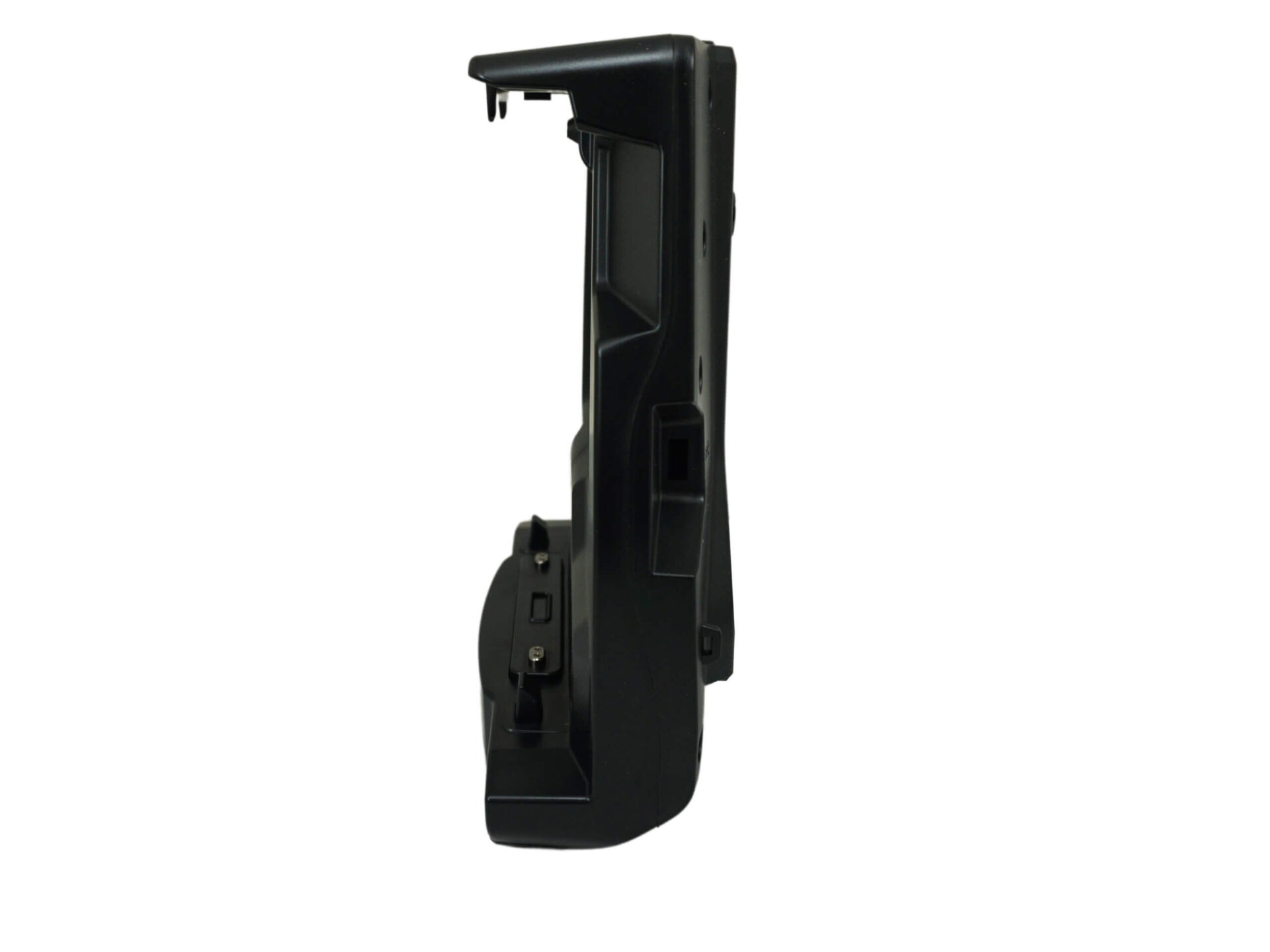

Havis DS-DELL-903-4 – Cradle for Dell’s 7230 Tablet with Quad Pass-Thru Antenna Connection

$44500

SKU: DS-DELL-903-4

Description

Product Features

  • Supports Dell’s 12€� Latitude 7230 Rugged Extreme Tablet in Warehouse & Distribution, Energy & Utilities, Public Safety, and other demanding environments
  • Cradle offers safe and secure stowage of tablet
  • Quad Pass-Through Antenna Connection to support WiFi, GPS and 4G/5G cellular signals
  • One-handed docking & undocking
  • Provides access to all buttons, ports, and bar code scanner when tablet is docked
  • Compatible with Dell 7230 tablet accessories including hard and soft handles, magnetic mount, rotating hand strap and shoulder strap
  • Compact & lightweight
  • Integrated cable management system
  • Integrated VESA 75 mounting pattern
  • Polycarbonate construction ensures strength, ruggedness and extreme temperature resistance
  • Rounded edges and corners for comfort and safety
  • Keyed lock for added security
  • Made in USA

Product Specs

  • Compatible computer: Dell 12€� Latitude 7230 Rugged Extreme Tablet
  • Certifications: Vibration Testing: MIL-STD 810H 514.5 Crash Testing: SAE J1455 30mph Cycle Testing: Latch handle and docking connectors 30K cycles Environmental Testing: Hot/Cold operational -29° C to 63° C (-20° F to 145° F); Hot/Cold storage -40° C to 85° C (-40° F to 185° F)
  • Antenna: Quad RF Pass-Thru Connection (SMA)
  • Dimensions: Height 10.2€� (259mm) latched, 10.7€� (272mm) unlatched; Width 10€� (254mm); Depth 3.5€� (89mm)
  • Product weight: 2.75 lbs (1.25kg)

User Manuals and Installation Instructions
View DS-DELL-903-4 Manual


Availability, Lead Times and Shipping

Please note that ALL Gamber-Johnson and Havis mounting and docking equipment typically takes at least a week to ship.  Lead times can often be 3-6+ weeks or longer depending on the exact items purchased.  The following is guidance only and changes frequently.

  • Basic mounting hardware such as plates or poles:  1-2 weeks to ship
  • Vehicle-specific kits or more complex mounting solutions:  2-4 weeks to ship
  • Powered docking stations with port replication:  4-8+ weeks to ship.

Please call, email, or chat with us to discuss lead times as it specifically relates to your needs.  Expedited shipping methods selected at checkout do not speed up lead times but rather reduce transit time when an order ships.
