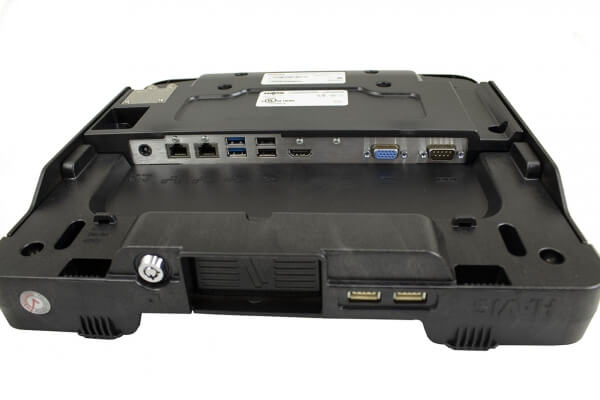

Havis DS-PAN-1111-2 – Docking Station For Panasonic TOUGHBOOK 33 2-In-1 Laptop With Advanced Port Replication and Dual Pass-Thru Antenna Connections

$1,15000

SKU: DS-PAN-1111-2

Description

Product Features

  • TOUGHBOOK certified dock supports the Panasonic TOUGHBOOK 33 2-in-1 in public safety, utilities, military, and other demanding environments
  • Panasonic certified electronics with advanced port replication includes video capability as well as standard options to support mission-critical peripherals
  • Increased connector protection via retractable cover that protects pins when device is absent
  • Lightweight & compact design
  • Integrated cable management system
  • Rounded edges for comfort & safety
  • Lock and key supplied for peace of mind theft deterrence
  • 3 Year Limited Standard Warranty, Enhanced Protection Plan Option Available
  • Made in the USA
  • Install Video: Panasonic TOUBOOK 20 & 33

Product Specs

  • Compatible computer: Panasonic TOUGHBOOK 33, 2-in-1 laptop
  • Dimensions: 2.73″ (6.93 cm) x 12.5″ (31.75 cm) x 11.74″ (29.82 cm)
  • Certifications: Panasonic Toughbook Certified, UL Safety Certified, Vibration Testing: MIL-STD 810G 514.5, Crash Test: SAE J1455 30mph crash testing, Cycle Test: latch handle & docking connectors mechanism 30,000 cycles, Environmental Testing: Hot/Cold operational & storageandle & docking connectors mechanism 30,000 cycles, environmental testing: hot/cold o
  • Connectivity: USB: fully-powered USB 2.0 (4), USB 3.0 (2), Ethernet: RJ45 Ethernet (2), serial: DB9 (9-Pin) connection (1), video: HDMI (1), VGA (1), input power: 15.6 v DC, antenna connections: dual pass-through (TNC connectors)
  • Product weight: 5.38 lbs. (2.44 kg)

User Manuals and Installation Instructions
View DS-PAN-1111-2 Manual


Availability, Lead Times and Shipping

Please note that ALL Gamber-Johnson and Havis mounting and docking equipment typically takes at least a week to ship.  Lead times can often be 3-6+ weeks or longer depending on the exact items purchased.  The following is guidance only and changes frequently.

  • Basic mounting hardware such as plates or poles:  1-2 weeks to ship
  • Vehicle-specific kits or more complex mounting solutions:  2-4 weeks to ship
  • Powered docking stations with port replication:  4-8+ weeks to ship.

Please call, email, or chat with us to discuss lead times as it specifically relates to your needs.  Expedited shipping methods selected at checkout do not speed up lead times but rather reduce transit time when an order ships.
