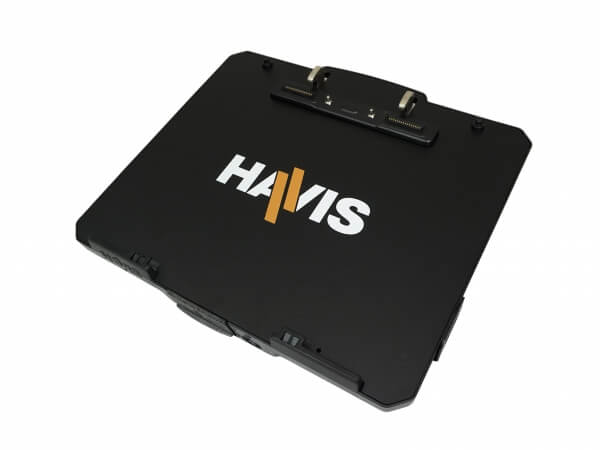

Havis DS-GTC-1001 – Docking Station For Getac K120 Convertible Laptop

$1,03000

SKU: DS-GTC-1001

Description

Product Features

  • Docking station for Getac K120 convertible laptop
  • Low profile design maximizes available space inside of vehicle
  • Full port replication and integrated strain relieving provide simple, safe, and secure connectivity to essential peripherals, as well as convenient and efficient cable
  • Rounded corners and edges provide safety in accidents and during airbag deployment, in addition to daily use and operation of docking station
  • Designed to fit all Havis and VESA 75 hole pattern mounting equipment, as well as most competitors
  • Lock and key supplied for peace of mind theft deterrence

Product Specs

  • Compatible computer: Getac K120 convertible laptop
  • Docking station dimensions (with mounting bracket): 11.66″ l x 13.32″ w x 2.68″ h (296mm x 338mm x 68.2mm)
  • Docking station dimensions (without mounting bracket): 11.66″ l x 13.32″ w x 2.43″ h (296mm x 338mm x 61.7mm)
  • Certifications: Vibration Testing: MIL-STD 810G 514.5; crash test: SAE J1455 30mph Crash Testing; cycle test: latch handle & docking connectors mechanism, 30,000 cycles; environmental testing: hot/cold operational & storage and thermal shock; bump testing
  • Connectivity – USB: fully-powered USB 2.0 (3 total – 2 front facing, 1 on I/O panel), USB 3.0 (3); Ethernet: RJ45 (2); serial: DB9 (1); video: VGA (1), HDMI (1); dock input power: (1)
  • Dock input power: 19V DC
  • Docking station product weight (without mounting bracket): 4.41 lbs (2.00 kg)
  • Docking station product weight (with mounting bracket): 5.79 lbs (2.63 kg)
  • Docking station product weight: 7.42 lbs (3.37 kg)

User Manuals and Installation Instructions
View DS-GTC-1001 Manual


Availability, Lead Times and Shipping

Please note that ALL Gamber-Johnson and Havis mounting and docking equipment typically takes at least a week to ship.  Lead times can often be 3-6+ weeks or longer depending on the exact items purchased.  The following is guidance only and changes frequently.

  • Basic mounting hardware such as plates or poles:  1-2 weeks to ship
  • Vehicle-specific kits or more complex mounting solutions:  2-4 weeks to ship
  • Powered docking stations with port replication:  4-8+ weeks to ship.

Please call, email, or chat with us to discuss lead times as it specifically relates to your needs.  Expedited shipping methods selected at checkout do not speed up lead times but rather reduce transit time when an order ships.



Additional information

Weight 8 lbs
Brand

Havis

Description

Description

Product Features

  • Docking station for Getac K120 convertible laptop
  • Low profile design maximizes available space inside of vehicle
  • Full port replication and integrated strain relieving provide simple, safe, and secure connectivity to essential peripherals, as well as convenient and efficient cable
  • Rounded corners and edges provide safety in accidents and during airbag deployment, in addition to daily use and operation of docking station
  • Designed to fit all Havis and VESA 75 hole pattern mounting equipment, as well as most competitors
  • Lock and key supplied for peace of mind theft deterrence

Product Specs

  • Compatible computer: Getac K120 convertible laptop
  • Docking station dimensions (with mounting bracket): 11.66″ l x 13.32″ w x 2.68″ h (296mm x 338mm x 68.2mm)
  • Docking station dimensions (without mounting bracket): 11.66″ l x 13.32″ w x 2.43″ h (296mm x 338mm x 61.7mm)
  • Certifications: Vibration Testing: MIL-STD 810G 514.5; crash test: SAE J1455 30mph Crash Testing; cycle test: latch handle & docking connectors mechanism, 30,000 cycles; environmental testing: hot/cold operational & storage and thermal shock; bump testing
  • Connectivity – USB: fully-powered USB 2.0 (3 total – 2 front facing, 1 on I/O panel), USB 3.0 (3); Ethernet: RJ45 (2); serial: DB9 (1); video: VGA (1), HDMI (1); dock input power: (1)
  • Dock input power: 19V DC
  • Docking station product weight (without mounting bracket): 4.41 lbs (2.00 kg)
  • Docking station product weight (with mounting bracket): 5.79 lbs (2.63 kg)
  • Docking station product weight: 7.42 lbs (3.37 kg)

User Manuals and Installation Instructions
View DS-GTC-1001 Manual


Availability, Lead Times and Shipping

Please note that ALL Gamber-Johnson and Havis mounting and docking equipment typically takes at least a week to ship.  Lead times can often be 3-6+ weeks or longer depending on the exact items purchased.  The following is guidance only and changes frequently.

  • Basic mounting hardware such as plates or poles:  1-2 weeks to ship
  • Vehicle-specific kits or more complex mounting solutions:  2-4 weeks to ship
  • Powered docking stations with port replication:  4-8+ weeks to ship.

Please call, email, or chat with us to discuss lead times as it specifically relates to your needs.  Expedited shipping methods selected at checkout do not speed up lead times but rather reduce transit time when an order ships.



Additional information

Weight 8 lbs
Brand

Havis
