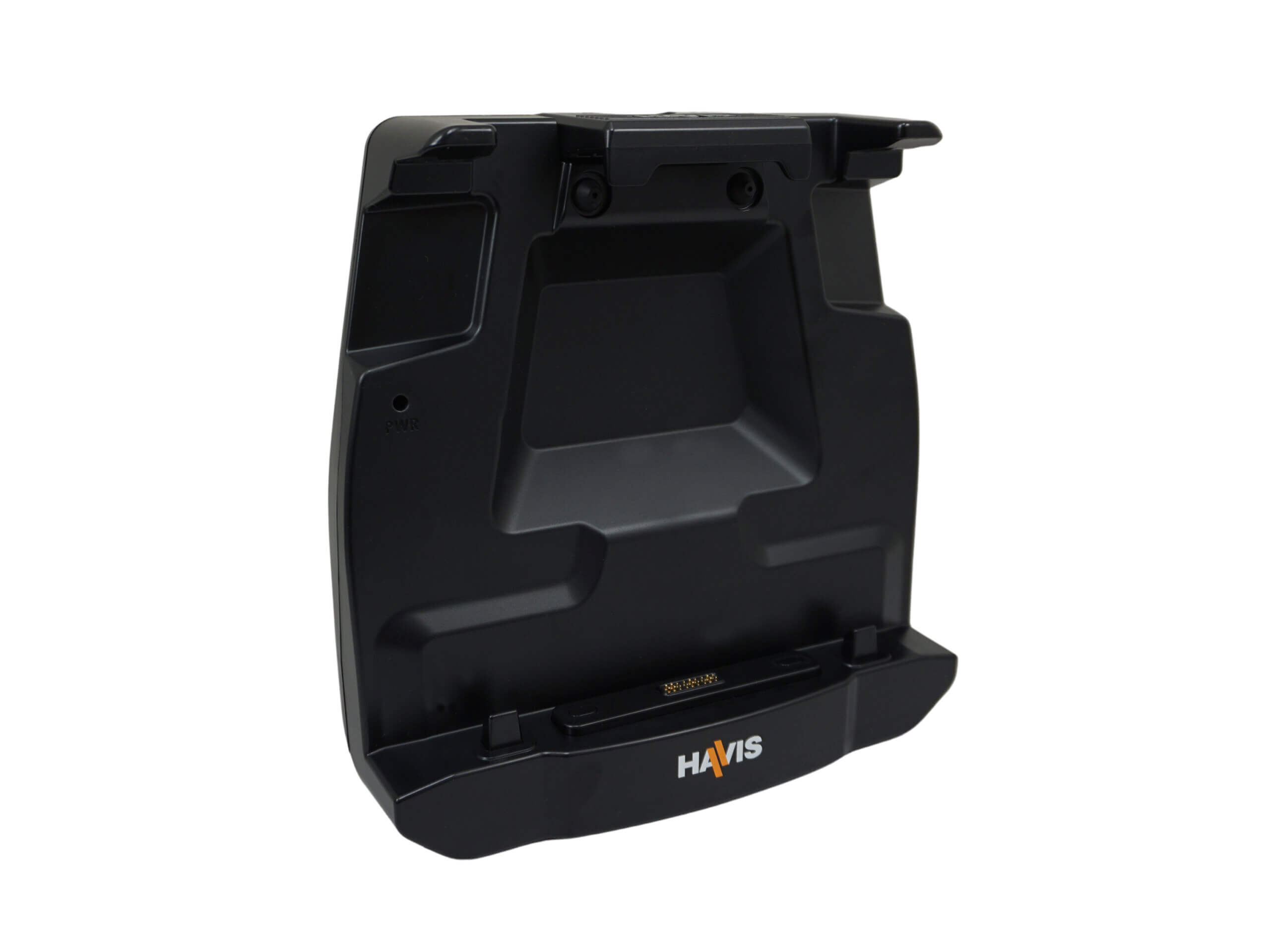

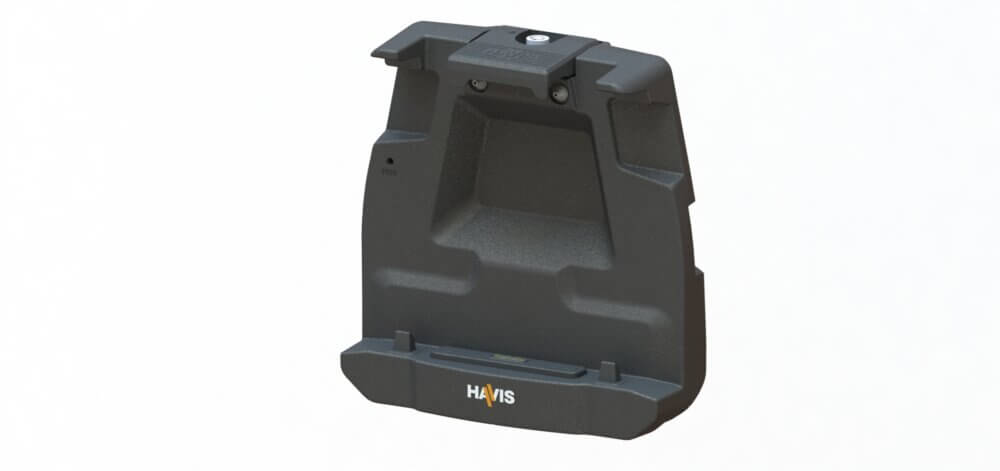

Description
Product Features
- Supports Dell’s 12‚¬ï¿½ Latitude 7230 Rugged Extreme Tablet in Warehouse & Distribution, Energy & Utilities, Public Safety, and other demanding environments
- Advanced port replication includes video capability as well as standard options to support mission-critical peripherals
- Side-mounted USB3.0 port
- LED power indicator
- One-handed docking & undocking
- Spring-loaded, floating docking connector head ensures connectivity even through heavy vibration
- Internal, non-isolated power supply (9-36V)
- Provides access to all buttons, ports, and bar code scanner when tablet is docked
- Compatible with Dell 7230 tablet accessories including hard and soft handles, magnetic mount, rotating hand strap and shoulder strap
- Compact & lightweight
- Integrated cable management system
- Integrated VESA 75 mounting pattern
- Polycarbonate construction ensures strength, ruggedness and extreme temperature resistance
- Rounded edges and corners for comfort and safety
- Keyed lock for added security
- Made in USA
Product Specs
- Compatible computer: Dell 12‚¬ï¿½ Latitude 7230 Rugged Extreme Tablet
- Certifications: Vibration Testing: MIL-STD 810H 514.5 Crash Testing: SAE J1455 30mph Cycle Testing: Latch handle and docking connectors 30K cycles Environmental Testing: Hot/Cold operational -29° C to 63° C (-20° F to 145° F); Hot/Cold storage -40° C to 85° C (-40° F to 185° F)
- Port Replication: (1) RJ45 Ethernet, (3) USB3.0 Type A, (1) USB-C, (1) DB9 Serial – 5V powered, (1) HDMI, (1) DC In port,
- Dimensions: Height 10.2‚¬ï¿½ (259mm) latched, 10.7‚¬ï¿½ (272mm) unlatched; Width 10‚¬ï¿½ (254mm); Depth 3.5‚¬ï¿½ (89mm)
- Product weight: 2.75 lbs (1.25kg)
User Manuals and Installation Instructions
View DS-DELL-902 Manual
Availability, Lead Times and Shipping
Please note that ALL Gamber-Johnson and Havis mounting and docking equipment typically takes at least a week to ship. Lead times can often be 3-6+ weeksor longer depending on the exact items purchased. The following is guidance only and changes frequently.
- Basic mounting hardware such as plates or poles: 1-2 weeks to ship
- Vehicle-specific kits or more complex mounting solutions: 2-4 weeks to ship
- Powered docking stations with port replication: 4-8+ weeks to ship.
Please call, email, or chat with us to discuss lead times as it specifically relates to your needs. Expedited shipping methods selected at checkout do not speed up lead times but rather reduce transit time when an order ships.
