Description
Product Features

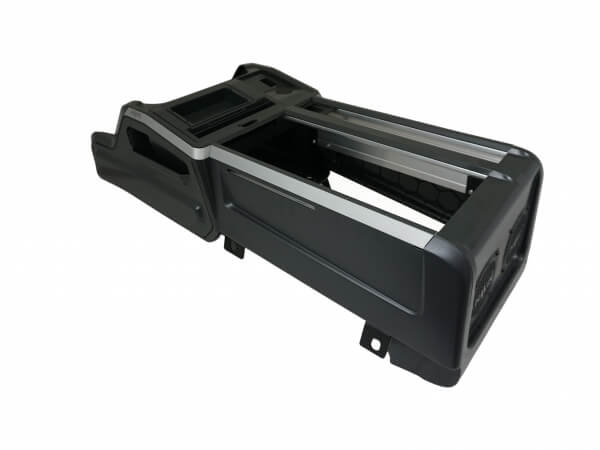

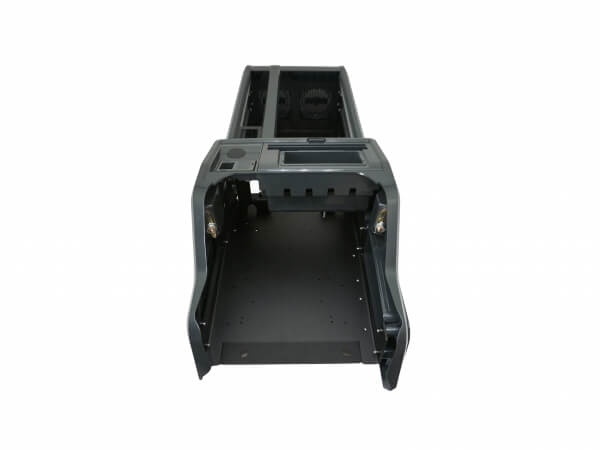

- Innovative console design incorporates the strength of steel with a lightweight engineered polycarbonate
- Heavy-duty steel floor-mounting structure provides rigid framework for console
- Polycarbonate chassis mounts to steel frame to offer high degree of strength, impact resistance, and thermal performance
- 23% lower weight than comporable steel consoles
- Low profile for safety and side-to-side egress
- Integrated printer mount for Brother PocketJet printer stows safely inside the front of the vsx console and creates additional mounting space
- Supports both PocketJet 7 and PocketJet 8 printers (appropriate USB cable might be required)
- Removable tray in front bin can be replaced with optional C-EBX kits for siren light control head options (sold separately): See VSX console accessories
- Additional front section features include slot for holding driver’s licenses or cards, recess for pen storage, optional internal pole mount (C-HDM-224, sold separately), relocated USB media hub, and port for 12V lighter plug
- 18″ of total equipment mounting space in 9″W section
- 3.3″W section includes 15″ of total equipment mounting space and removable 3″ bracket for relocating 110V outlet
- Storage pockets with provisions for dual USB & 12V outlet , removable access panels, and 8″ nut track for side-mounted accessories on driver and passenger sides
- Internal features include equipment tray, mounting provisions for fuse block kits, CG-X, DS-DA-602 hub, dual Motorola speakers, and integrated cable management system.
- Use with CUP2-1004 self-adjusting double cup holder (fixed mount and C-ARM-1001 arm rest, sold separately)
- Filler plates and equipment brackets for 9″W and 3.3W sections included to enclose mounting areas
- See Havis 3.3″ wide console accessories for options
- Made in the USA with a lifetime warranty
Product Specs
- Dimensions: 42.6″ l x 16.8″ w x 13.3″ h
- Compatible printers: Brother PocketJet PJ-722, 723, 762, 763 & 773, PJ-822, PJ-823, PJ-862, PJ-863, and PJ-883 Model kits
- Mounting: Use with Brother PocketJet 7 and PocketJet 8 Series printers without battery, which have threaded inserts on printer used for mounting
- Chevrolet Tahoe: Fits 2021-2022 Chevrolet Tahoe PPV and SSV without OEM console
- Chevrolet Suburban: Fits 2021-2022 Chevrolet Suburban LS with 40-20-40 split bench front seat option
- Equipment Mounting: For vehicles equipped with OEM console C-VS-1100-GMC-2 is recommended for equipment mounting
User Manuals and Installation Instructions
View C-VSX-1800-TAH-PM Manual
Availability, Lead Times and Shipping
Please note that ALL Gamber-Johnson and Havis mounting and docking equipment typically takes at least a week to ship. Lead times can often be 3-6+ weeks or longer depending on the exact items purchased. The following is guidance only and changes frequently.
- Basic mounting hardware such as plates or poles: 1-2 weeks to ship
- Vehicle-specific kits or more complex mounting solutions: 2-4 weeks to ship
- Powered docking stations with port replication: 4-8+ weeks to ship.
Please call, email, or chat with us to discuss lead times as it specifically relates to your needs. Expedited shipping methods selected at checkout do not speed up lead times but rather reduce transit time when an order ships.
