Description
Product Features

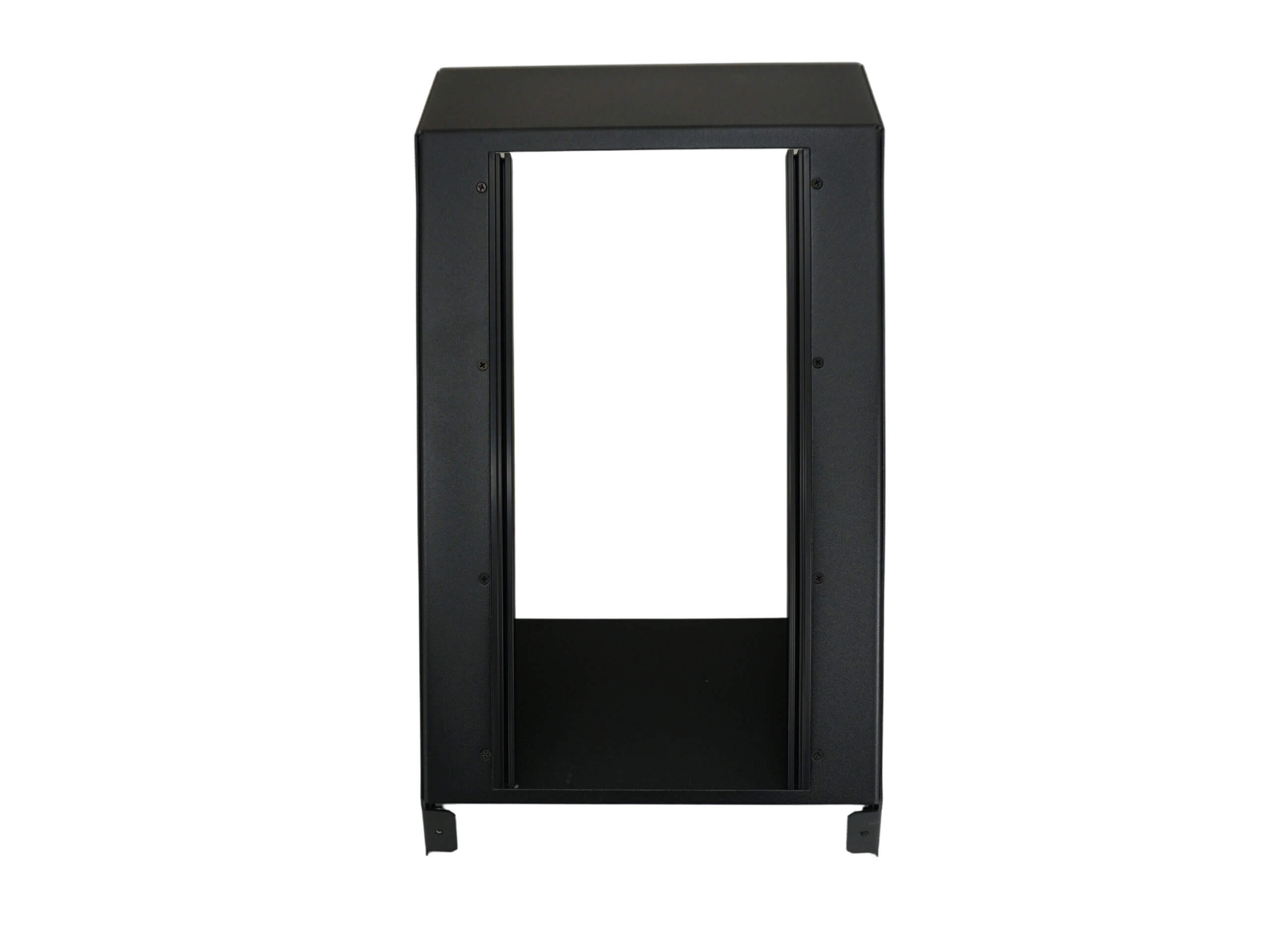

- 18″ vehicle-specific console for 2002-2023 Chevrolet G-Series or GMC Savanna van Model
- Easy to install
- No permanent modification required
- Designed to mount to vehicle floor surface
- No vehicle mounting kit required
- 14 gauge formed steel housing with extruded aluminum top frame
- Includes filler plates (FP) and/or equipment brackets (EB) to completely enclose mounting area less internal mount options
- Ships motor freight when ordering 2 or more
- Does not work with C-HDM-107 computer mount
- For gas engine van only, does not work in diesel engine van
- View console accessories here
Product Specs
- Overall measurements: 9″ high x 9″ wide x 28.25″ long (including forward trim panel)
- Height: 19″
- Width at engine cover: 17″
- Width at face (controls): 13.5″
- Depth for controls: top= 9″ , middle= 12″, bottom=4″
- Console top platform: 8.5″ x 13.5″ wide (tapers out to 17″)
- Extends out from engine cover at – FLOOR: 20″
User Manuals and Installation Instructions
View C-VS-1800-SAV Manual
Availability, Lead Times and Shipping
Please note that ALL Gamber-Johnson and Havis mounting and docking equipment typically takes at least a week to ship. Lead times can often be 3-6+ weeks or longer depending on the exact items purchased. The following is guidance only and changes frequently.
- Basic mounting hardware such as plates or poles: 1-2 weeks to ship
- Vehicle-specific kits or more complex mounting solutions: 2-4 weeks to ship
- Powered docking stations with port replication: 4-8+ weeks to ship.
Please call, email, or chat with us to discuss lead times as it specifically relates to your needs. Expedited shipping methods selected at checkout do not speed up lead times but rather reduce transit time when an order ships.
