Description

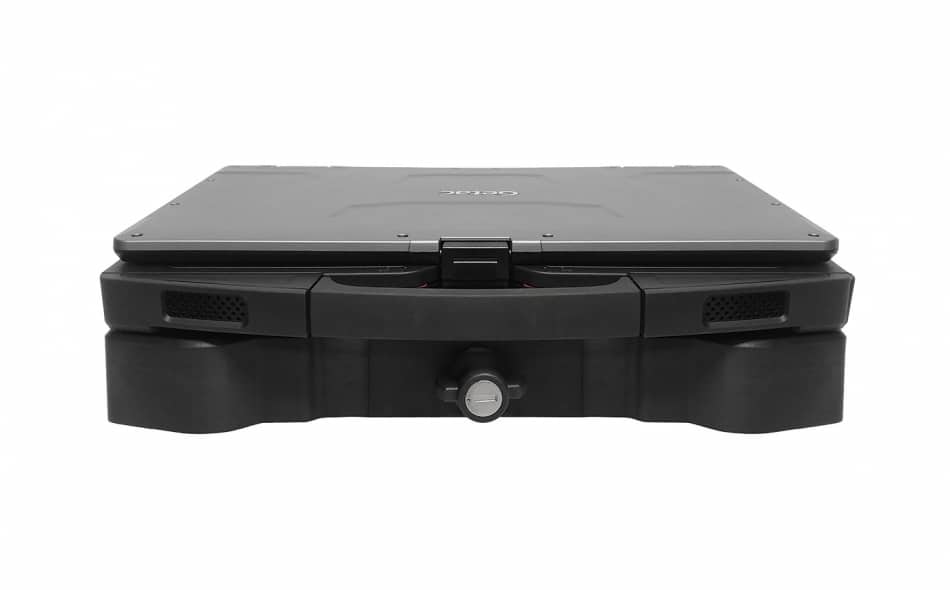

Gamber-Johnson’s S410 docking station is designed to mount a Getac S410 notebook in a fleet vehicle. The docking station is thin and light (4.47 lbs/2.03 kg) and features a spring-loaded connector to ensure connectivity even in the roughest terrain.
Port Replication
- Ethernet – RJ45
- USB 3.0 9 Pin (1)
- USB 2.0 4 Pin (3)
- HDMI – 19 Pin
- Serial – D-sub 9 Pin
- Input voltage – 19 VDC
- VGA – D-sub 15 Pin
- Microphone/speaker
Power Supply
- Not included – must use external Getac 120W auto power adapter (7300-0471)
Features
- Small footprint designed to maximize available space
- Rear-facing I/O ports, integrated cable strain relief system, and convenient cable management system
- Rear hooks and guide pins ensure proper alignment and docking connectivity
- Spring-loaded docking connector to ensure connectivity in the roughest terrain
- Plate draws back into docking station when the computer is docked
- Docking station designed to accommodate optional VGA attachments
- Can be used with Gamber-Johnson motion attachments with the VESA 75 mm hole pattern
- Rugged composite/steel construction with black powder coat finish for long-term durability
- Screen support is included with the dock
- Optional power supply bracket (7120-0736) to attach Getac power supply to the bottom of the dock (sold separately)
- External power supply sold separately
Testing & Certificates
- RoHS, FCC
- C-Tick
- MIL-STD 810G Environmental: Humidity, Temperature High/Low (Operational/Storage)
- Vibration/shock testing: MIL-STD 810G 514.5
- Docking mechanism tested: 30,000 cycles
- SAE Standard J1455 Crash Test
Warranty
- 3-Year Limited Warranty
- Explore our extended warranty program
Availability, Lead Times and Shipping
Please note that ALL Gamber-Johnson and Havis mounting and docking equipment typically takes at least a week to ship. Lead times can often be 3-6+ weeks or longer depending on the exact items purchased. The following is guidance only and changes frequently.
- Basic mounting hardware such as plates or poles: 1-2 weeks to ship
- Vehicle-specific kits or more complex mounting solutions: 2-4 weeks to ship
- Powered docking stations with port replication: 4-8+ weeks to ship.
Please call, email, or chat with us to discuss lead times as it specifically relates to your needs. Expedited shipping methods selected at checkout do not speed up lead times but rather reduce transit time when an order ships.
