Description

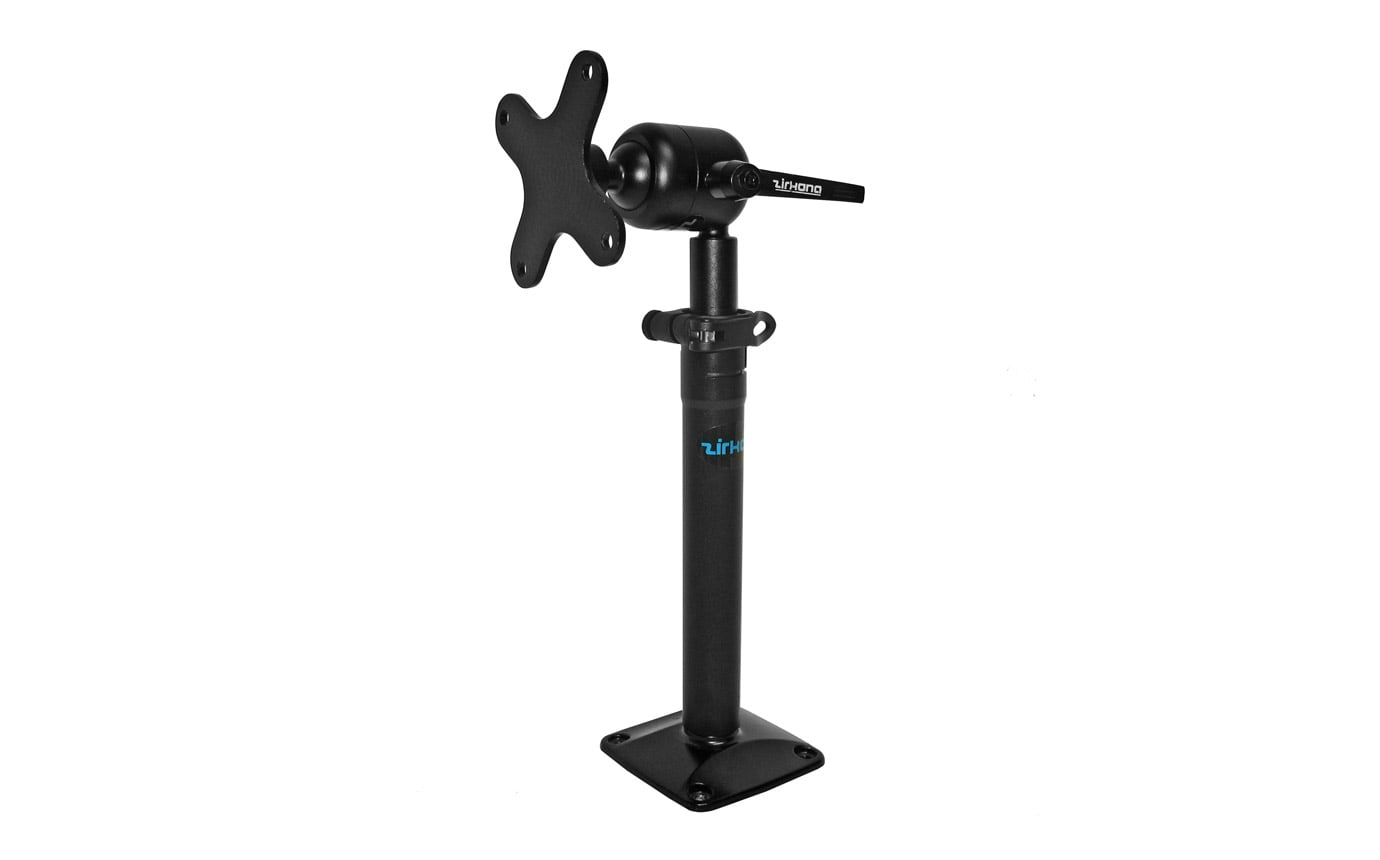

Permanent workstation mounting solution for any environment.
Maximum weight capacity
- Vibration environment – joiner holds up to 11 lbs / 5kg
- Static environment – joiner holds up to 55 lbs / 25kg
Note: Extension tube will lower the overall payload rating of the joiner. The longer the extension, the lower the overall rating for the joiner.
Features
- Permanent workstation mounting solution with decorative base
- 4 (10.2 cm) square x .75 (1.9 cm) high base with VESA 75mm mounting hole pattern
- 9.25″ (23.5 cm) height-adjustable pedestal; spans 9.25″ – 15.75″ (23.5 cm – 40.0 cm)
- Articulated joiner with tension handle to position display for the proper viewing angle
- Tension handle locks pedestal at the desired height
- VESA 75mm mounting adapter – fits most displays
- Anodized aluminum with black finish
Kit Includes
- Decorative base (17238)
- Height-adjustable pole (7110-1230)
- Threaded adapter (14145)
- Large joiner (7110-1236)
- VESA 75mm adapter plate (14139)
- Assembly required
Note
- Recommend use of LOCTITE? 9460, 9461, or 9466 on all M20 size threads (See part number 7300-0510)
Warranty: Limited Lifetime
- A limited lifetime warranty is against manufacturer defects, not normal wear and tear.
Availability, Lead Times and Shipping
Please note that ALL Gamber-Johnson and Havis mounting and docking equipment typically takes at least a week to ship.? Lead times can often be 3-6+ weeks?or longer depending on the exact items purchased.? The following is guidance only and changes frequently.
- Basic mounting hardware such as plates or poles:? 1-2 weeks to ship
- Vehicle-specific kits or more complex mounting solutions:? 2-4 weeks to ship
- Powered docking stations with port replication:? 4-8+ weeks to ship.
Please call, email, or chat with us to discuss lead times as it specifically relates to your needs.? Expedited shipping methods selected at checkout do not speed up lead times but rather reduce transit time when an order ships.
?
