Description
Product Features

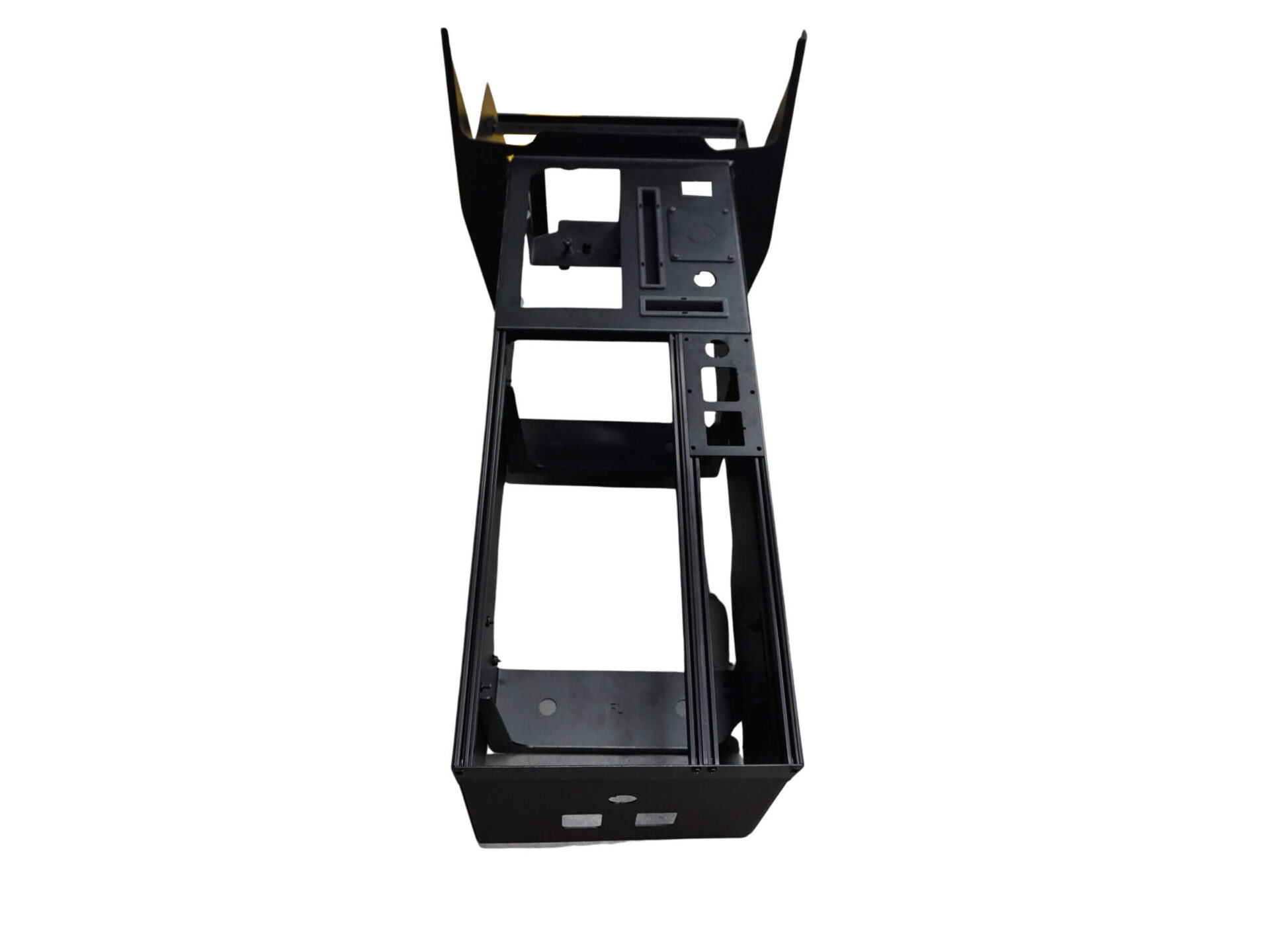

- 12.5″ wide 20″ vehicle-specific angled console for 2022-2023 Ford F-150 Lightning vehicle with Pro & XTL trim levels & 2021-2023 Ford F-150 XLT Retail Pickup
- 20″ of total equipment mounting space in 9″W section
- 13″ of total equipment mounting space in 3.3″W section
- Single piece console housing w/ removable side panels mounts between seats and fits lower dash contour
- Front top panel includes two (2) 12 volt lighter plug sockets with wire and fuse, cutout for OEM aux input module, rectangle cutout for optional C-SW-x rocker switch or C-USB-2, and 7/8″ hole for additional optional 12V socket (CM216560)
- Console includes provisions for internal or external side mount poles C-HDM-204 or C-HDM-214 (sold separately)
- Compatible with internal cup holder and angled wedges (CUP2-1001 & CUP2-1005) or external cup holder (CUP2-1002), sold separately
- Works with side mount armrest part number C-ARM-102 & C-ARM-108 (sold separately)
- Includes internal front electrical equipment mounting shelf with removable front side trim panels for easy access
- Includes speaker cutout in removable side panels
- Passenger side front trim panel includes a knockout plate for when OEM 120 volt socket is used. Side panels also include perforations to allow for equipment cooling as well as internal speaker mounting
- Mounting kit included
- If using console with a vertical gun rack between seats, a partition with gun alcove is recommended
- Accepts most standard accessories (sold separately)
- View 3.3″ Wide console accessories here
Product Specs
- Overall measurements: 21.1″ high x 18.7″ wide x 48.9″ long (including forward trim panel)
- Info: 3.3″W section now comes unpopulated
- Your Needs: Customize to your specific needs
- Equipment Brackets: Includes equipment brackets and filler plates to enclose area
- Accessories: See Havis 3.3″ wide console accessories for options
User Manuals and Installation Instructions
View C-VSW-2000-LTNG Manual
Availability, Lead Times and Shipping
Please note that ALL Gamber-Johnson and Havis mounting and docking equipment typically takes at least a week to ship. Lead times can often be 3-6+ weeks or longer depending on the exact items purchased. The following is guidance only and changes frequently.
- Basic mounting hardware such as plates or poles: 1-2 weeks to ship
- Vehicle-specific kits or more complex mounting solutions: 2-4 weeks to ship
- Powered docking stations with port replication: 4-8+ weeks to ship.
Please call, email, or chat with us to discuss lead times as it specifically relates to your needs. Expedited shipping methods selected at checkout do not speed up lead times but rather reduce transit time when an order ships.
