Gamber-Johnson 7170-0854-12: Zebra ET51/56 8″ SLIM Port Replication Docking Station w/External LIND 12-32 VDC Isolated Power Adapter

$86000

SKU: 7170-0854-12

Description

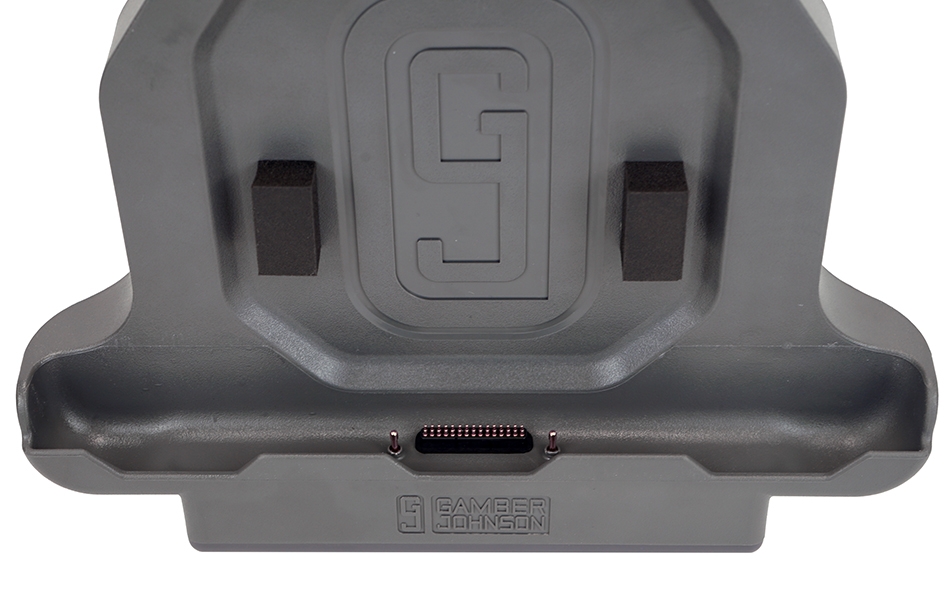

Gamber-Johnson’s Zebra ET51/56 8″ SLIM Port Replication docking station provides a full range of I/O ports to connect peripherals. This dock features a complete cable restraint-system and the front-facing release latch button makes one-handed docking/release very easy. This kit includes a LIND isolated material handling power adapter. Now shipping.

Antenna Pass-Through

  • None

Port Replicator

  • Zebra Certified Electronics
  • USB 3.0 (2) – 9 pin (900mA)
  • RS232 Serial (1) – Power on pin 9 (825mA)
  • Ethernet (1) – RJ45 (322 mb/s)
  • Power Input: 12VDC

Power Supply Included

  • Yes – LIND isolated material handling power adapter, 12-32 VDC input range, 12 VDC output voltage, 3.5 Amps output current with bare wire lead (7300-0466)

Features

  • Designed for the Zebra ET51/56 8″ rugged tablet computer with rugged frame
  • Zebra Certified with Zebra Certified electronics
  • This dock does not accommodate ET51/56 accessories
  • Front camera on ET5X accessible when the tablet is in the docking station
  • Compatible with Windows or Android operating systems
  • Access to all control buttons and ports while the tablet is safely docked
  • POGO pin connector provides power to charge the Zebra tablet while docked
  • Bottom-facing I/O ports; integrated cable restraint/cable management system
  • Guide pins prevent damage to the docking connection when docking the tablet
  • Composite/aluminum design for reduced weight and extended durability
  • Designed with rounded edges to enhance personal safety
  • Keyed lock for security and theft deterrence
  • Forward facing docking latch/release for easy one-handed operation:
    • Insert bottom of Zebra tablet into the docking station and push top of the tablet until the lock engages
    • To remove, lift latch to disengage and pull computer out of docking station
  • VESA 75 mm and AMPS mounting patterns; compatible with Gamber-Johnson€™s Zirkona mounting products

Testing & Certificates

  • MIL-STD 810G Shock/Vibration Tested
  • MIL-STD 810G Environmental Testing: Humidity, High/Low Temperature, (storage/operational)
  • SAE J1455 Crash Tested
  • Cycle Tested: 30K Cycles, Docking Connector, Latching & Locking Mechanisms
  • RoHS, FCC, CE Certifications

Kit Includes

  • Zebra ET51/56 8″ SLIM Port Replication Docking Station
  • LIND Power adapter
  • Mounting hardware
  • Installation guide

Warranty


Availability, Lead Times and Shipping

Please note that ALL Gamber-Johnson and Havis mounting and docking equipment typically takes at least a week to ship.  Lead times can often be 3-6+ weeks or longer depending on the exact items purchased.  The following is guidance only and changes frequently.

  • Basic mounting hardware such as plates or poles:  1-2 weeks to ship
  • Vehicle-specific kits or more complex mounting solutions:  2-4 weeks to ship
  • Powered docking stations with port replication:  4-8+ weeks to ship.

Please call, email, or chat with us to discuss lead times as it specifically relates to your needs.  Expedited shipping methods selected at checkout do not speed up lead times but rather reduce transit time when an order ships.
