Description
Product Features

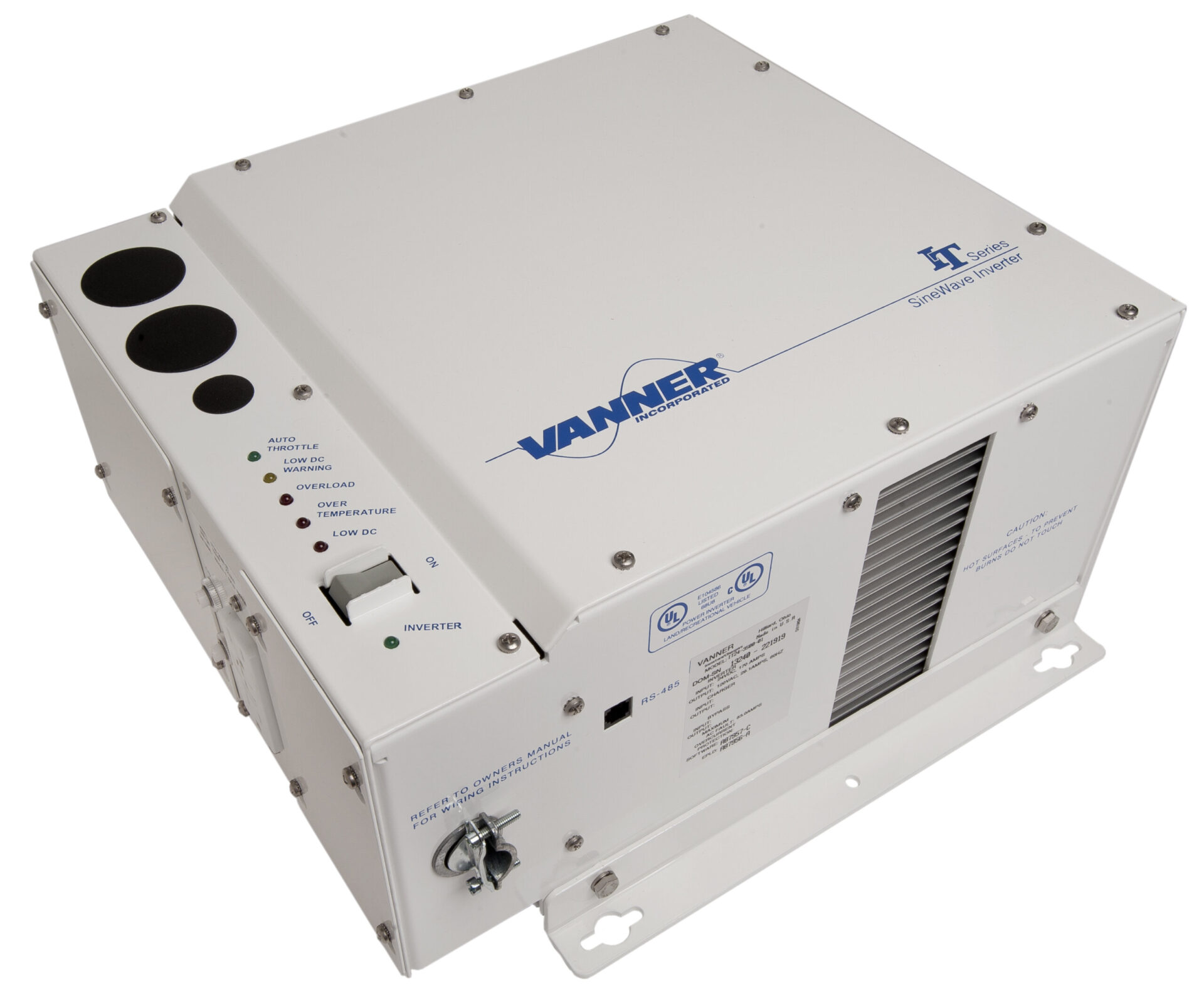

- Vanner’s Industrial Grade IT Series AC Power Inverters operate and protect even the most sensitive equipment in the most extreme conditions
- Provides 3000W of continuous power and 3-second surge power up to 6000W
- DC-AC inverter system designed with advanced power electronic and microprocessor technology
- TruWave technology generates pure sine wave AC power to operate and protect the most sensitive electronic devices in the most extreme conditions
- Efficienty rating of 90% to 93% provides longer inverter engine-off run time from batteries and lower battery discharge
- Voltage Regulation ±5% and Waveform Regulation <4% THD
- DC input range of 10.5Vdc to 16.6Vdc offers the widest DC input range available and works with all OEM multi-voltage and multi-mode alternators
- Operating temperature range of -40F to 105F (-40C to 40C) for reliability in any climate
- Three seconds of surge time offers ample surge time to start and operate the most demanding tools and equipment
- Easy installation via Multi-Configurable mounting brackets
- GFCI Duplex Receptacle
- 3 DC Input Cable Locations
- All-metal body and chassis ensures safe operation and secure mounting regardless of orientation
- Optional: Load Demand Energy Saver
- 4-yr warranty if installed with Vanner approved installation harness
Product Specs
- Certifications: UL 458
- DC Input: 12Vdc
- DC Voltage Range: 10.5V to 16.5V
- Operating Temperature: -40F to 105F (-40C to 40C)
- Surge Rating: 200% of continuous power for 3 seconds
- Dimensions: 8.0”H x 13.75”W x 15.75”D
- Product Weight: 76 lbs
- EMC Standards: FCC Class B
- Efficiency: 90% to 93%
- Standby Recovery: 5 seconds
- Gross Weight: 75 lbs
