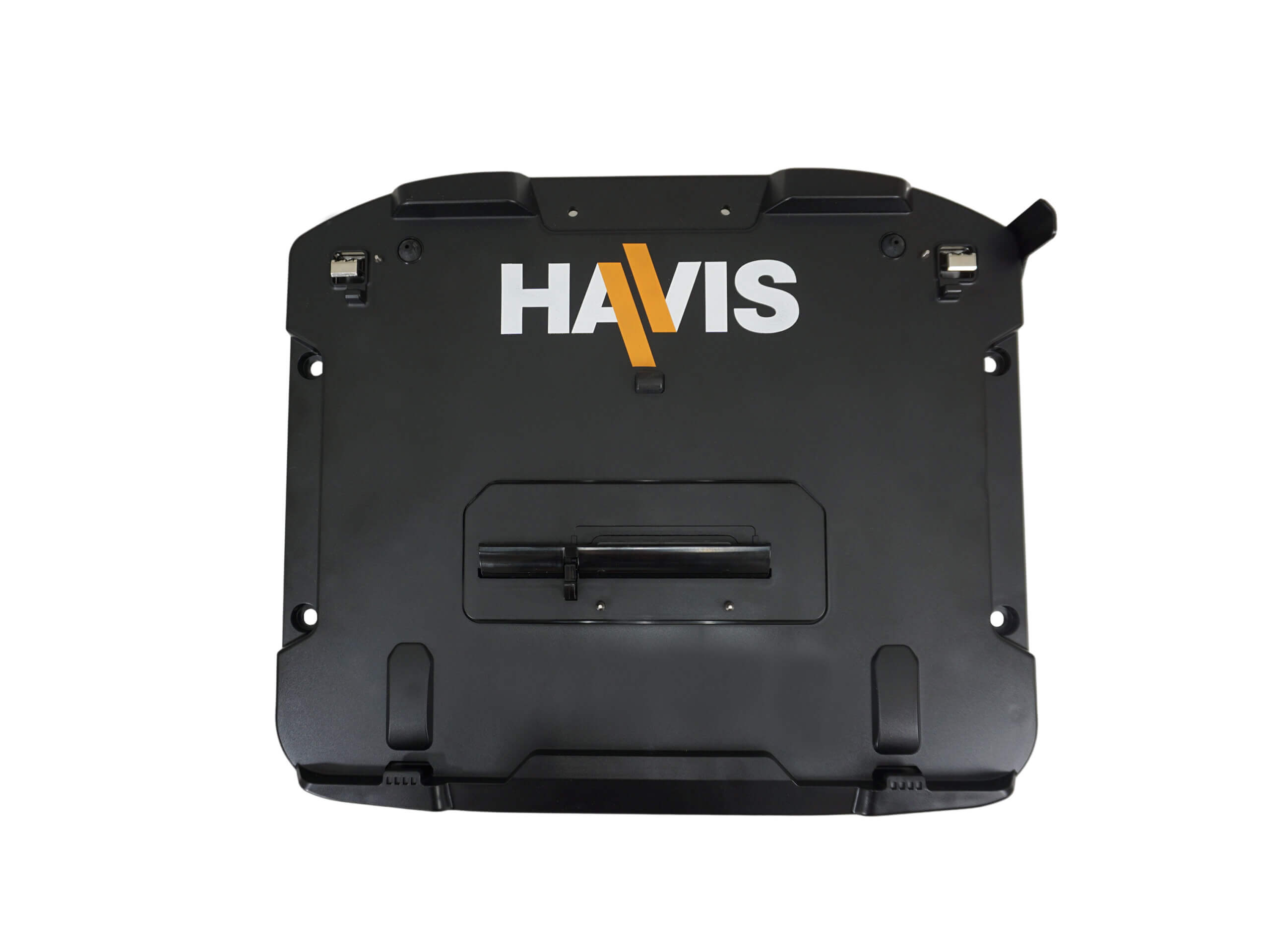

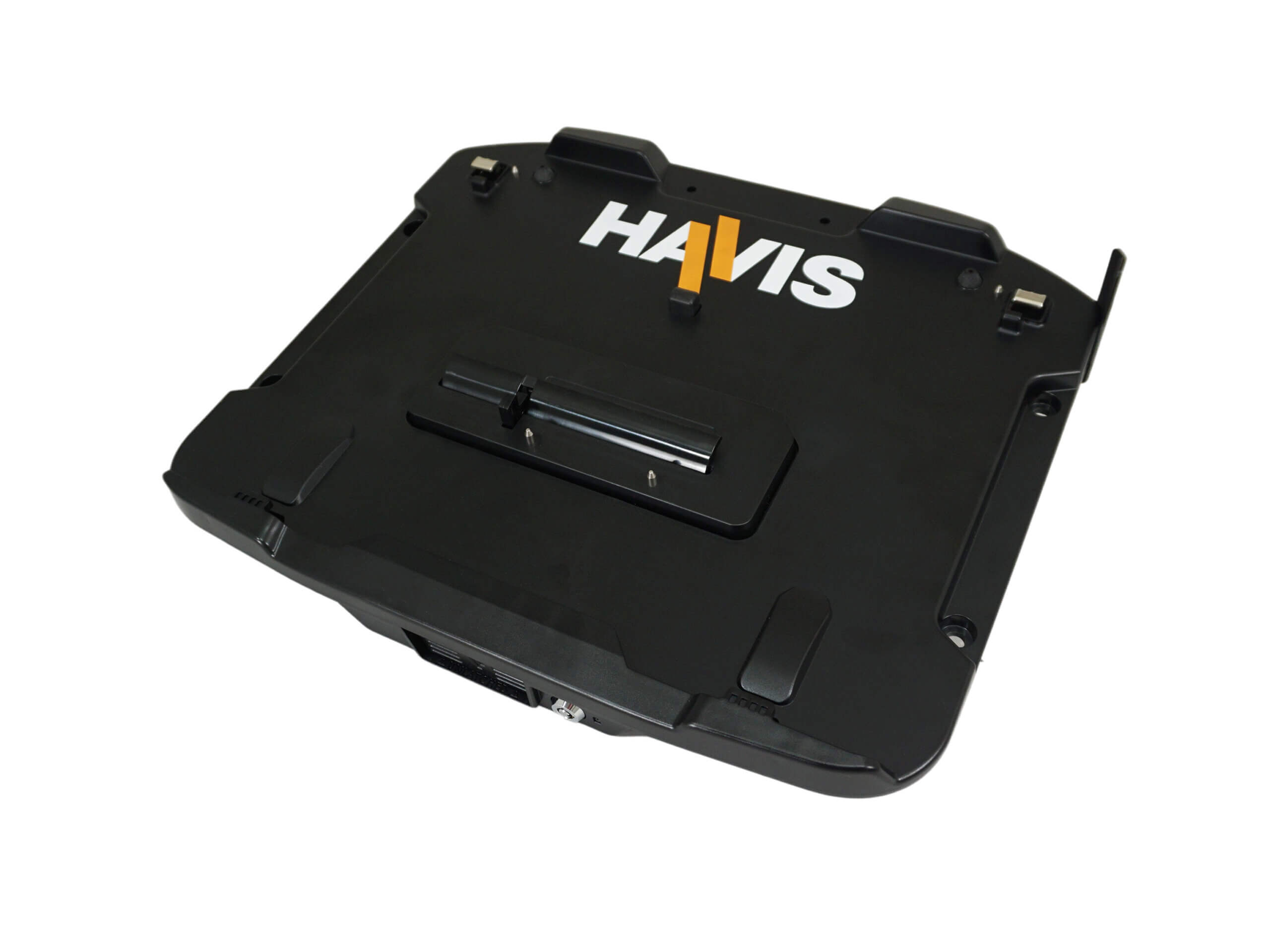

Havis DS-PAN-1502-4 – Docking Station For Panasonic TOUGHBOOK 40 Laptop with Standard Port Replication and Quad Pass-Thru Antenna Connections and LIND Power Supply

$1,28000

SKU: DS-PAN-1502-4

Description

Product Features

  • Supports the Panasonic TOUGHBOOK 40 laptop in Public Safety, Federal, Work Truck, and other demanding environments
  • Includes LPS-103 LIND external power supply
  • Panasonic certified electronics with standard port replication to connect multiple mission-critical peripherals
  • Quad Pass-Through Antenna Connection to support WiFi, GPS and 4G/5G cellular signals

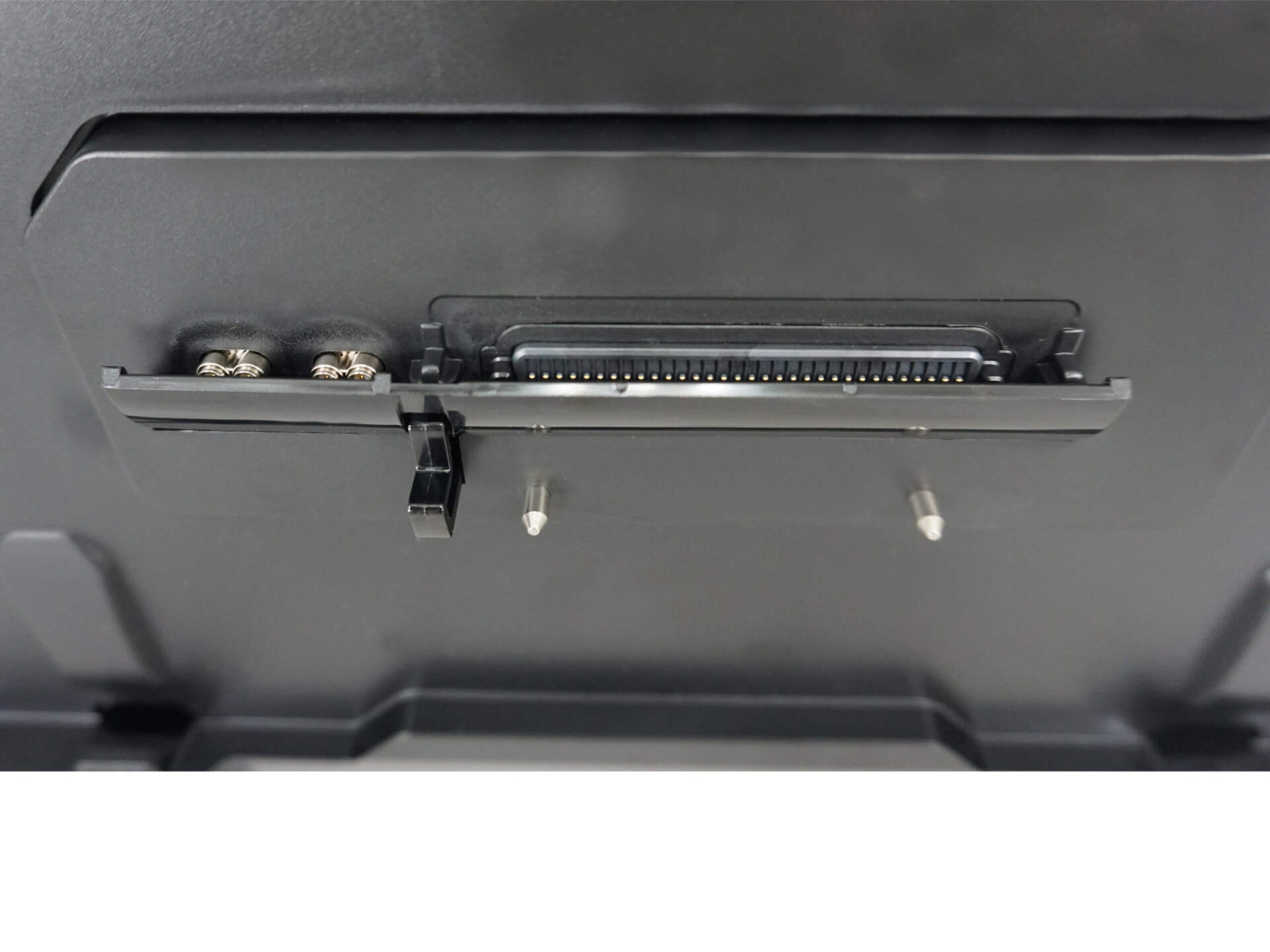

  • Spring-loaded connector head ensures constant contact between docking station and computer
  • Retractable connector cover offers additional protection to connector head and antenna pins
  • Access to critical laptop buttons and ports when docked
  • Though-body mounting bracket design for easy installation and increased theft deterrence
  • Finger recesses for easy computer removal
  • Lightweight, durable and compact design
  • Compatible with screen support (DS-DA-423, sold separately)
  • Rounded edges for comfort & safety
  • Integrated cable management system
  • Keyed lock for theft deterrence
  • Made in USA

Product Specs

  • Compatible computer: Panasonic TOUGHBOOK 40
  • Dimensions: W 14.4″ (36.6 cm) x D 12.3″ (31.3 cm) x H 2.63″ (6.7 cm)
  • Certifications: Vibration testing: mil-std 810H 514.5, Panasonic: Toughbook Certified, UL Safety Certified, crash test: sae J1455 30mph crash testing, cycle test: latch handle & docking connectors mechanism 30,000 cycles
  • Connectivity: Serial: DB9 (9-Pin) connection (1), USB: fully-powered USB 2 Type A (2), USB: fully-powered USB 3 Type A (1), USB: fully-powered USB 2 Type C (1, front), USB: fully-powered USB 3 Type C (2), Ethernet: RJ45 Ethernet (2), input voltage: 15.6V dc, Antenna: Quad Pass-Thru Connection (SMA)
  • Product Weight: 6.25 lb (2.5 kg)

User Manuals and Installation Instructions
View DS-PAN-1502-4 Manual


Availability, Lead Times and Shipping

Please note that ALL Gamber-Johnson and Havis mounting and docking equipment typically takes at least a week to ship.  Lead times can often be 3-6+ weeks or longer depending on the exact items purchased.  The following is guidance only and changes frequently.

  • Basic mounting hardware such as plates or poles:  1-2 weeks to ship
  • Vehicle-specific kits or more complex mounting solutions:  2-4 weeks to ship
  • Powered docking stations with port replication:  4-8+ weeks to ship.

Please call, email, or chat with us to discuss lead times as it specifically relates to your needs.  Expedited shipping methods selected at checkout do not speed up lead times but rather reduce transit time when an order ships.



Additional information

Weight 9 lbs
Brand

Havis
