Havis DS-GTC-1201-3 – Docking Station For Getac B360 and B360 Pro Laptops With Triple Pass-Thru Antenna Connections

$90500

SKU: DS-GTC-1201-3

Description

Product Features

  • Supports the Getac B360 and B360 Pro
  • Ideal for public safety, military, utilities, manufacturing and other demanding environments
  • Fits either computer size – no dock adjustments needed
  • Durable, compact and lightweight
  • One-handed docking
  • Advanced port replication
  • Reinforced mounting bracket
  • Spring-loaded connector head
  • Keyed-lock
  • Powered by Getac 120W vehicle adapter (LPS-140, sold separately)
  • Compatible with screen support DS-DA-418 (sold separately)
  • Proudly made in the USA

Product Specs

  • Compatible computer(s): Getac B360 and B360 Pro laptops
  • Docking station dimensions (with mounting bracket): 11.52″ l x 13.79″ w x 2.54″ h (293mm x 350mm x 64mm)
  • Docking station dimensions (without mounting bracket): 11.52″ l x 13.79″ w x 2.41″ h (293mm x 350mm x 61mm)
  • Certifications: Vibration Testing: MIL-STD 810H 514.5; crash test: SAE J1455 30mph Crash Testing; cycle test: latch handle & docking connectors mechanism, 30,000 cycles; environmental testing: hot/cold operational & storage and thermal shock; bump testing

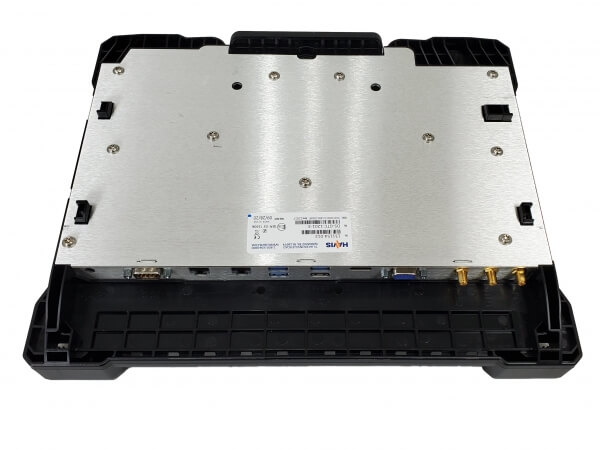

  • Connectivity – USB: fully-powered USB 2.0 (3 total – 2 front facing, 1 on rear I/O panel), USB 3.0 (3); Ethernet: RJ45 (2); serial: DB9 (1); video: VGA (1), HDMI (1); dock input power: (1); rf: (3 SMA connectors)
  • Dock input power: 19V DC
  • Docking station product weight (without mounting bracket): 3.28 lbs (1.49 kg)
  • Docking station product weight (with mounting bracket): 5.22 lbs (2.36 kg)
  • Docking station gross weight: 6.50 lbs (2.95 kg)

User Manuals and Installation Instructions
View DS-GTC-1201-3 Manual


Availability, Lead Times and Shipping

Please note that ALL Gamber-Johnson and Havis mounting and docking equipment typically takes at least a week to ship.  Lead times can often be 3-6+ weeks or longer depending on the exact items purchased.  The following is guidance only and changes frequently.

  • Basic mounting hardware such as plates or poles:  1-2 weeks to ship
  • Vehicle-specific kits or more complex mounting solutions:  2-4 weeks to ship
  • Powered docking stations with port replication:  4-8+ weeks to ship.

Please call, email, or chat with us to discuss lead times as it specifically relates to your needs.  Expedited shipping methods selected at checkout do not speed up lead times but rather reduce transit time when an order ships.
