Description
Product Features

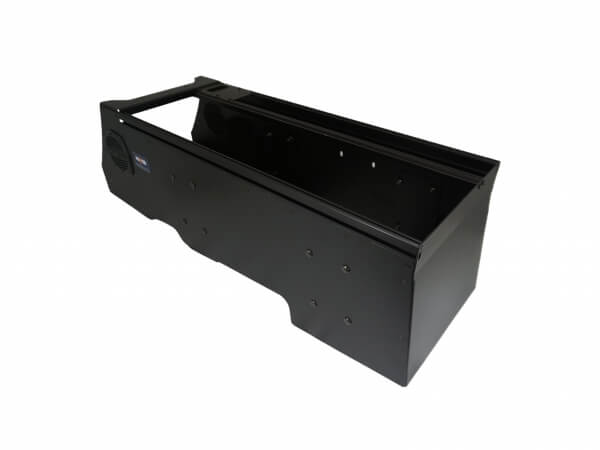

- 30″ long 12.5″ wide style vehicle-specific console for 2017-2022 Ford F-250, 350, 450 XL and XLT super duty pickup, F-450 and 550 cab chassis, 2017-2022 F-600 Chassis Cab, 2015-2020 F-150 SSV (Special Service pickup), 2018-2020 F-150 (Responder, 2015-2020
- 30″ of total equipment mounting space in 9″W section
- 24.5″ of total equipment mounting space in 3.3″W section
- Angled console cleanly fits between the bucket seats and the dash contour for a custom look in your vehicle
- Heavy gauge steel, welded construction for Heavy-duty use and durability
- Black powder coat finish
- Lifetime warranty
- Made in USA
-
Includes:
- Filler plates (FP) and/or equipment brackets (EB) to completely enclose mounting area less internal mount options
- Provisions for internal or external side mount poles and side panels with perforations to allow for equipment cooling as well as internal speaker mounting
- Vehicle mounting kit, no drilling required
- Cutout for relocation of OEM USB into the console and additional trim panel for XL dash without CD player
-
Compatible Solutions:
- C-DMM-3006 dash monitor mounts, C-ARM-102, C-HDM-214, C-USB-2 dual USB charge module, C-SW-x rocker switch, C-PM-122 printer mount
- View 3.3″ Wide console accessories here
Product Specs
- C-PM-122 printer mount
- Overall measurements: 12.89″ high x 12.5″ wide x 38″ long (including forward trim panel)
- See side view drawing min/max mounting depth allowed for control heads and/or options
- OEM tunnel plate must be removed
- Console only works in Super Duty XL and XLT models with Standard AM/FM Stereo
- If using console with a vertical gun rack between seats, a partition with gun alcove is recommended. there is 9.5″ from end of console to Pro-gard a partition gun alcove. dual weapons mount not recommended because of lack of space
- Works with column shifter and OEM full length center console (OEM console must be removed, but the dash will have uncovered areas on the sides) dash parts to fill space can be ordered from Ford. rear OEM ductwork must also be removed and blocked off
- The console is not compatible in higher trim level trucks with 4 X 4-floor shifters, full-length center console, or with the 12″ screen for Sync 3 with Voice-Activated Navigation or Sync 4 with Enhanced Voice Recognition
- Does not work with OEM manual transmission floor shifter
- Not compatible with OEM optional ‚¬Å“Ultimate Trailer Tow Camera System with Pro Trailer Backup Assist‚¬ï¿½
User Manuals and Installation Instructions
View C-VSW-3000-F150-1 Manual
Availability, Lead Times and Shipping
Please note that ALL Gamber-Johnson and Havis mounting and docking equipment typically takes at least a week to ship. Lead times can often be 3-6+ weeksor longer depending on the exact items purchased. The following is guidance only and changes frequently.
- Basic mounting hardware such as plates or poles: 1-2 weeks to ship
- Vehicle-specific kits or more complex mounting solutions: 2-4 weeks to ship
- Powered docking stations with port replication: 4-8+ weeks to ship.
Please call, email, or chat with us to discuss lead times as it specifically relates to your needs. Expedited shipping methods selected at checkout do not speed up lead times but rather reduce transit time when an order ships.
