Description
Product Features

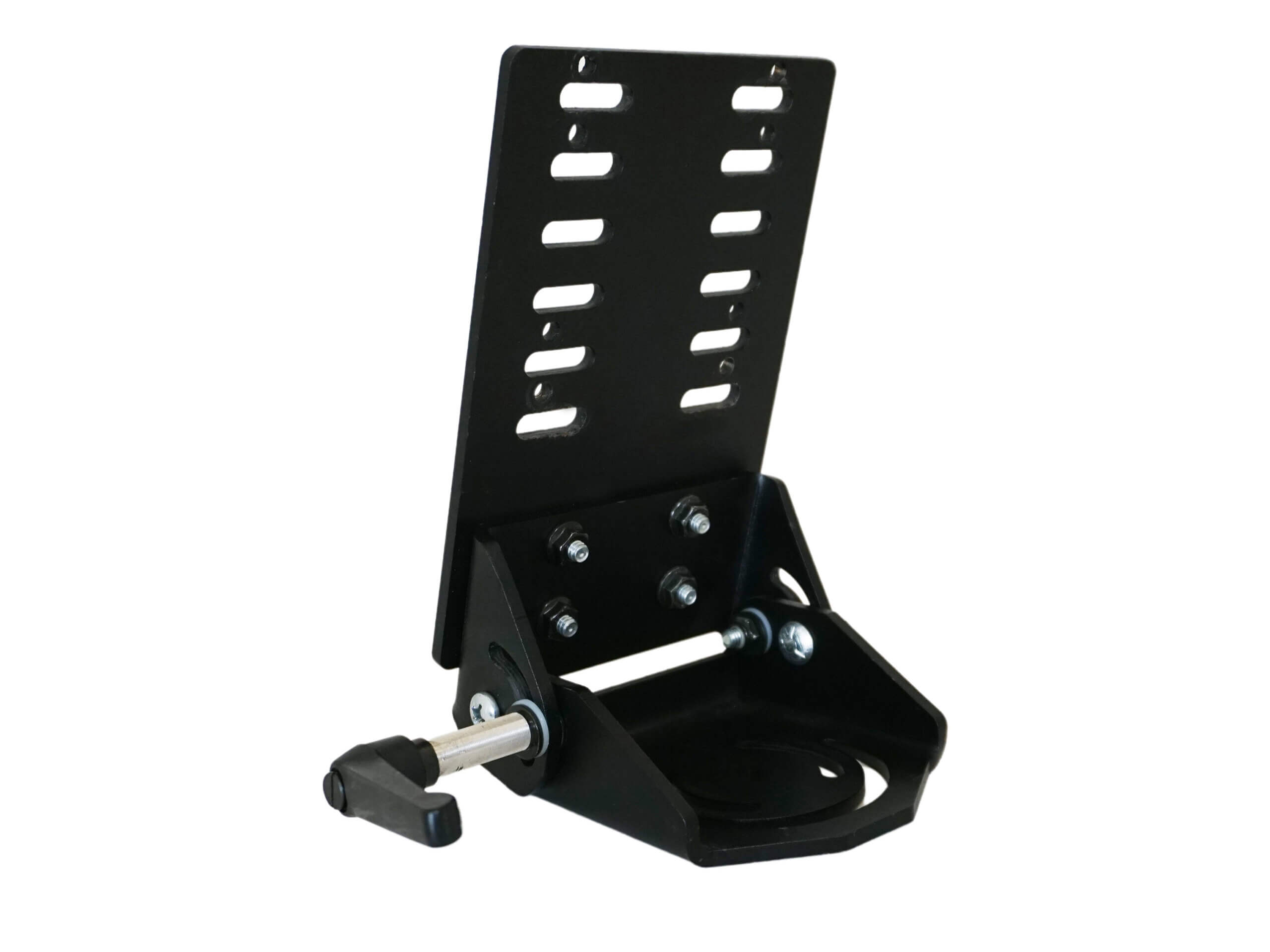

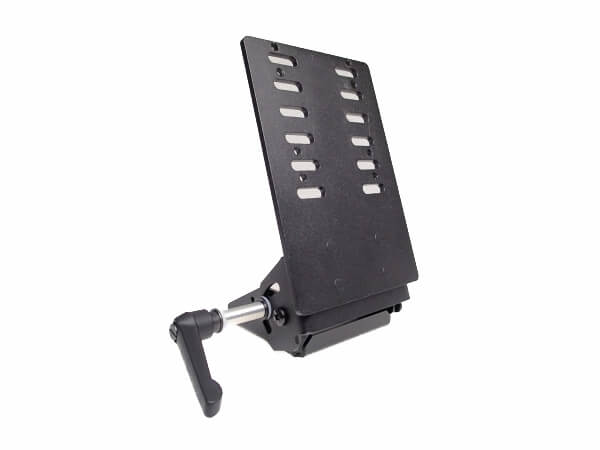

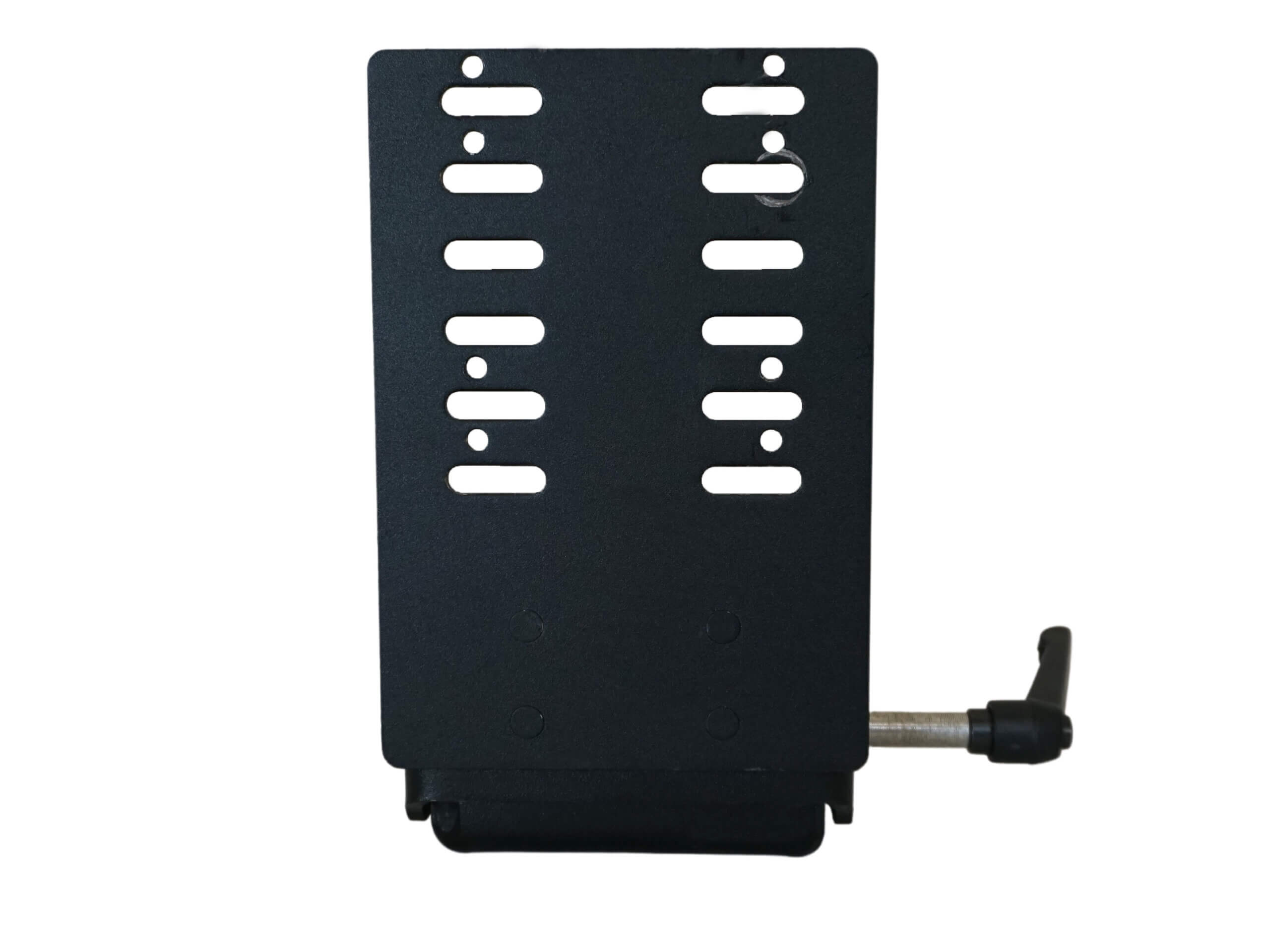

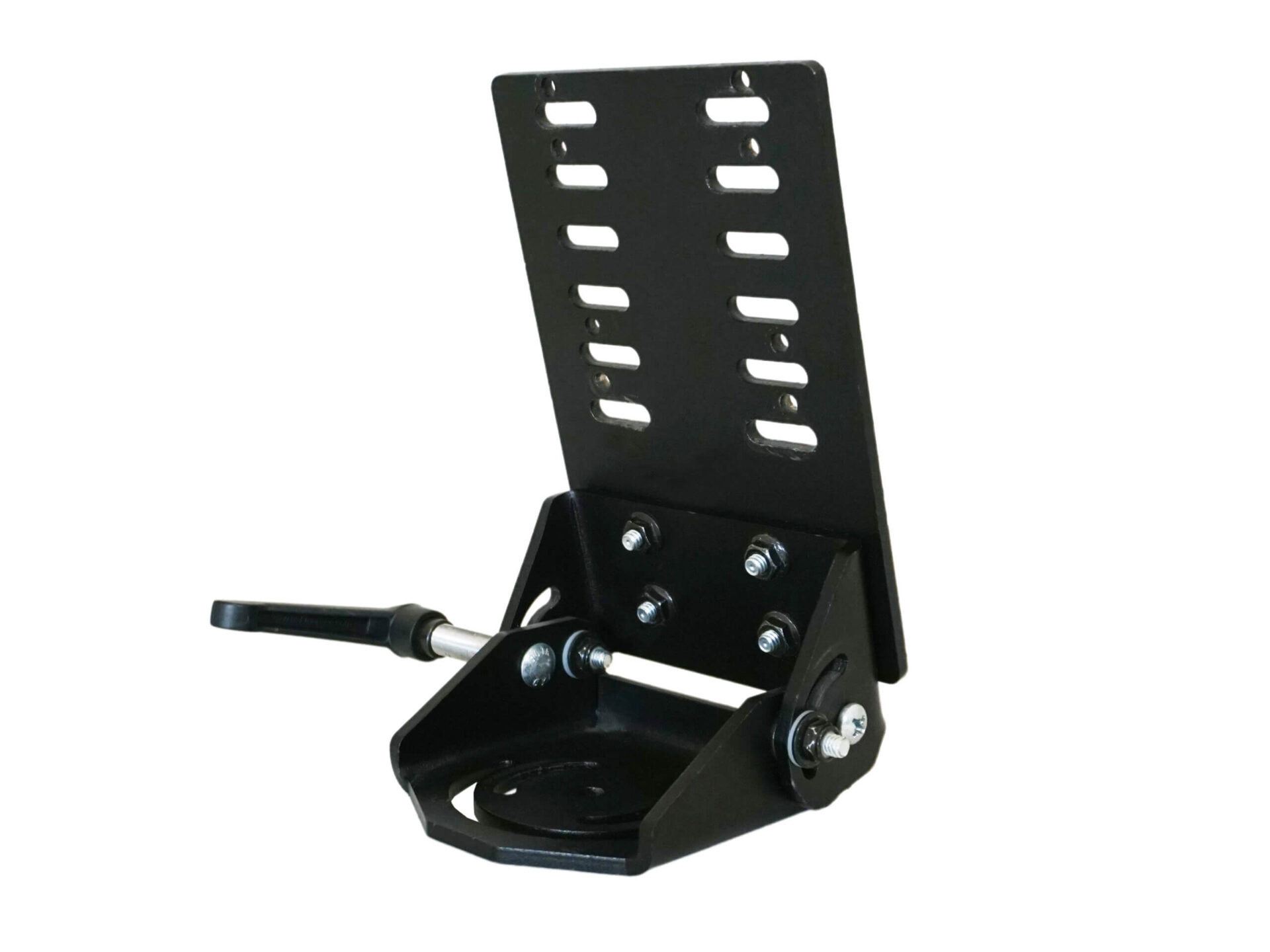

- Tilt swivel motion device for compact tablet applications
- Used to mount Havis, inc. tablet mounts or other products with VESA 75 hole pattern
- Some products can be mounted on both sides for additional positioning options
- DS-PAN-800 Series and UT-201 fit on both sides (see photos)
- Mounts to C-HDM-300 Series, C-SM-SA, C-3083-1 and other products with motion device hole pattern
- Mounts to CM007855 (see C-MH-1003)
- Can be used on C-HDM-305 with C-KBM-100 Series
- 8.50″ overall height in open position (at 90°)
- 115° maximum vertical tilt movement
- 90° and 180° horizontal rotation ( limited 180° applications)
- Assembly includes tilt swivel device with C-MM-218
- Includes short locking handle
- Material: heavy-gauge steel for rugged durability with black powder coat for anti-glare and rust prevention
- DS-PAN-600 Series not recommended on this device
Product Specs
User Manuals and Installation Instructions
View C-MD-207 Manual
Availability, Lead Times and Shipping
Please note that ALL Gamber-Johnson and Havis mounting and docking equipment typically takes at least a week to ship. Lead times can often be 3-6+ weeksor longer depending on the exact items purchased. The following is guidance only and changes frequently.
- Basic mounting hardware such as plates or poles: 1-2 weeks to ship
- Vehicle-specific kits or more complex mounting solutions: 2-4 weeks to ship
- Powered docking stations with port replication: 4-8+ weeks to ship.
Please call, email, or chat with us to discuss lead times as it specifically relates to your needs. Expedited shipping methods selected at checkout do not speed up lead times but rather reduce transit time when an order ships.
