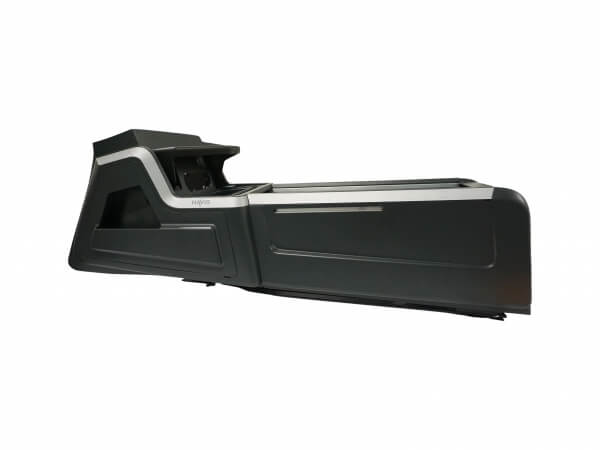

Description
Product Features
- Innovative console design incorporates the strength of steel with a lightweight engineered polycarbonate
- Heavy-duty steel floor-mounting structure provides rigid framework for console
- Polycarbonate chassis mounts to steel frame to offer high degree of strength, impact resistance, and thermal performance
- 30% lower weight than comparable steel consoles
- Integrated printer mount C-PMX-102 for Brother PocketJet printer included, stows safely inside the front of the VSX console and creates additional mounting space
- Easy access to printer controls and paper roll
- 18″ total internal mounting space
- Heavy-duty “hood” for equipment mounting
- Ultra-low profile for safety and side-to-side egress
- Slot for holding driver’s licenses or cards and recess for pen storage
- Storage pockets, removable access panels, and 8″ nut track for side-mounted accessories on driver and passenger sides
- Rear floor bracket with mounting hole pattern for CG-X
- Use with CUP2-1004 self-adjusting double cup holder (fixed mount and C-ARM-1001 arm rest, sold separately)
- Filler plates and equipment brackets included to enclose mounting areas
- Made in the USA with a lifetime warranty
- OEM 12 volt socket cannot be reused when printer is installed. Optional C-LP series plate recommended
Product Specs
- Works with OEM ready for the road package wiring conduit
- 13″ wide at front, 9″ wide at seats
- 24″ total length
- Mounts between seats and fits lower dash contour once OEM tunnel plate is removed
- Use with Brother PocketJet 8 Series printers without battery, which have threaded inserts on printer used for mounting
- Compatible printers: Brother PocketJet 8 PJ-822, 823, 862, 863, and 873 Model kits
- Gross Weight: 26 lbs
