Description
Product Features

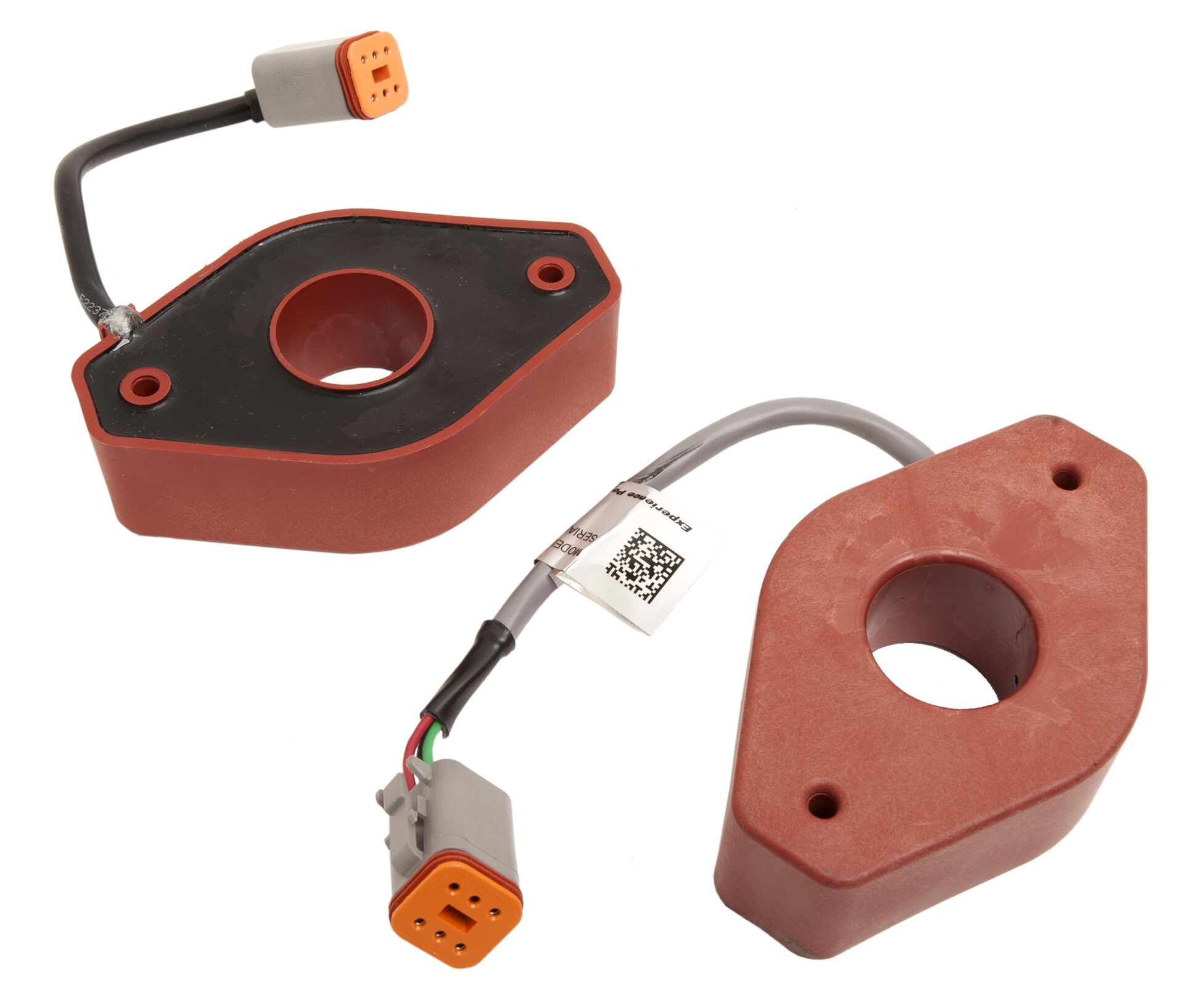

- VSS Series Current Sensor is designed to operate in the most severe enviroments
- High Strength Glass Filled Polycarbonate housing
- Mount with #10 or M5 hardware
- DC Cable opening for up to 4/0 awg and 4/0 lug
- Sensitivity at 5V supply is: 3.17 mV/A
- Required mating Deutsch connection
- 18 months warranty
- DC Input: Supply Voltage: 4.5-5.5 V
- DC Voltage Range: Supply Current: 25 mA
- Operating Temperature: -40F to 125F (-40C to 52C)
- Surge Rating: Load Resistence is: 10kΩ
- Dimensions: 1.25”H x 4.5”W x 2.9”D
- Product Weight: < 1.0 lbs
- Gross Weight: 0.5 lbs
