Description
Product Features

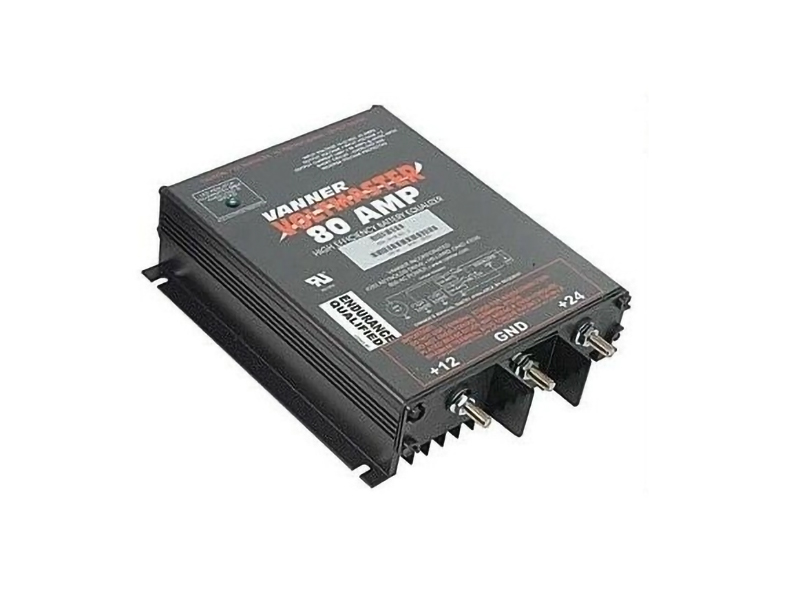

- VoltMaster Battery Equalizer is an efficient and highly reliable method of obtaining a 12 volt DC power source from a 24 volt DC electrical system
- The equalizer makes the batteries look like they are in series and parallel at the same time
- In addition to providing regulated 12 volt power, the system ensures that battery voltages remain equal which significantly extends battery life
- Ideally suited for vehicle and alternate energy applications, the VoltMaster Battery Equalizer is designed to save your batteries and the money you would spend replacing them
- Efficienty rating of 96% extends the life of your batteries
- Max input current at 24Vdc provides 32 Amps & output current at 12Vdc provides 0-80 Amps to support your application needs
- Operating temperature range of -40C to +75C for reliability in any climate
- Mounting location should be a flat surface close to the batteries to allow short battery cable runs
- Anodized aluminum enclosure provides protection against salt, fungus, dust, water, fuel vapors and all fluids associated with commercial and off-highway vehicle operations
- DC Input: 20 to 32 Vdc
- Efficiency: >96%
- Max Input Current (24Vdc): 43 Amps
- Output Voltage: (Input Voltage/2) +/- 2% – 50mv
- Output Current (12Vdc): 0-80 Amps
- Operating Temperature: -40C to +75C
- Standby Mode Current @28.4V: 17 milliamps nominal
- Storage Temperature: -54C to +95C
- Dimensions: 9.8″H x 8.5″W x 2.5″D
- Product Weight: 6.3 lbs
- Gross Weight: 0 lbs
