Description
Product Features

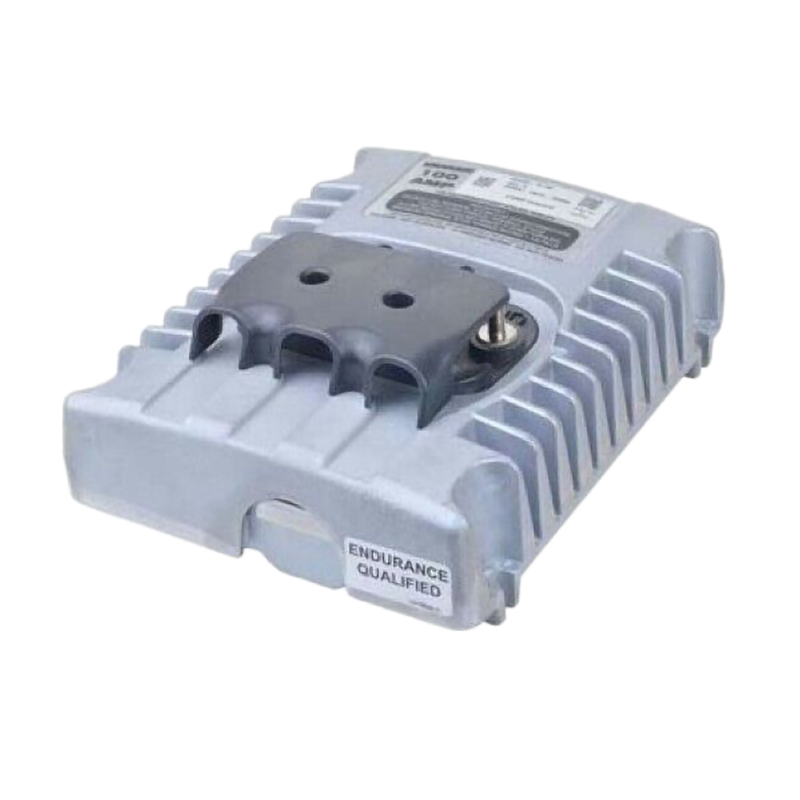

- VANN-Guard Battery Equalizer is an efficient and highly reliable method of obtaining a 12 volt DC power source from a 24 volt DC electrical system
- The equalizer makes the batteries look like they are in series and parallel at the same time
- In addition to providing regulated 12 volt power, the system ensures that battery voltages remain equal which significantly extends battery life
- Ideally suited for vehicle and alternate energy applications, the VoltMaster Battery Equalizer is designed to save your batteries and the money you would spend replacing them
- Efficienty rating of 97% extends the life of your batteries
- Max input current at 24Vdc provides 32 Amps & output current at 12Vdc provides 0-100 Amps to support your application needs
- Operating temperature range of -40°C to +95°C (-40°F to 203°F) for reliability in any climate
- Mounting location should be a flat surface close to the batteries to allow short battery cable runs
- Cast aluminum enclosure provides protection against salt, fungus, dust, water, fuel vapors and all fluids associated with commercial and off-highway vehicle operations
- Input Voltage 24v: 18 to 32 V
- Efficiency (Peak): >97%
- Max 24v Input: 53 Amps
- Output Voltage: (Input Voltage/2) ±2%
- Output Current (12Vdc): 0-100 Amps
- Standby Mode Current: 17 milliamps nominal at 28.4V
- Operating Temperature: -40°C to +95°C (-40°F to 203°F)
- Storage Temperature: -54°C to +105°C (-65°F to 221°F)
- Serviceable: Yes
- Dimensions: 10.6″H x 8.5″W x 3.6″D
- Gross Weight: 0 lbs
