Description
Product Features

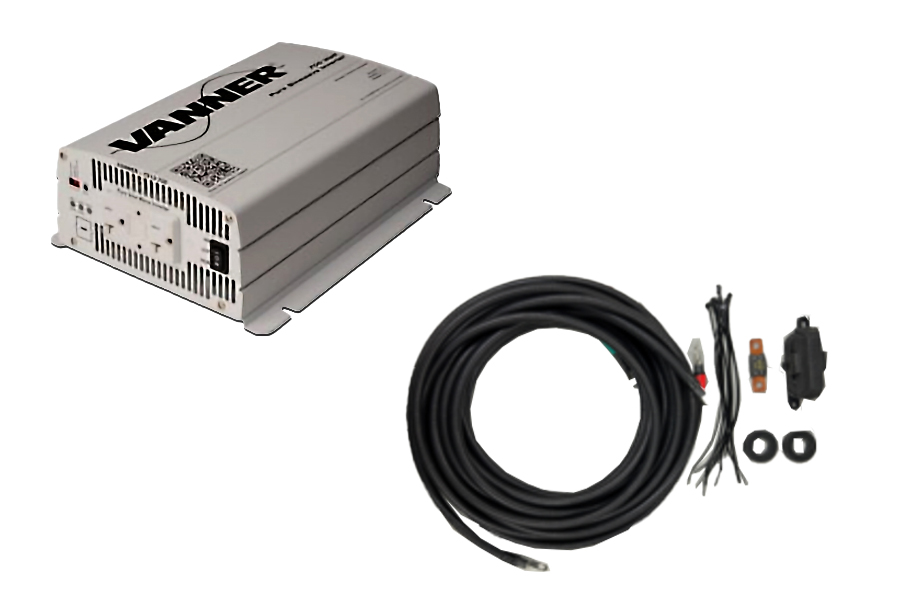

- Commercial Grade TS Series AC Power Inverters operate and protect equipment in harsh conditions
- Provides 1000W of continuous sine wave power and 3-second surge power up to 1500W
- Fully Terminated Installation Wire Harness included: 6.4 ft long 2 awg, in-line fuse
- Wire Harness designed to SAE Standards J1127/J1129
- Wire Harness is Vehicle OEM compliant
- DC-AC inverter system designed with advanced power electronic and microprocessor technology
- TruSine™ technology generates pure sine wave AC power to operate and protect electronic devices even in harsh conditions
- Efficienty rating of >92% provides longer inverter engine-off run time from batteries and lower battery discharge
- Voltage Regulation ±5% and Waveform Regulation <5% THD
- DC input range of 10.5Vdc to 16.5Vdc is compatible with all OEM voltage and alternators
- Operating temperature range of -13F to 105F (-25C to 40C)
- Three seconds of surge time offers ample surge time to start and operate the most demanding tools and equipment
- Double Warranty Length with this Inverter and Wire Harness Bundle (4 years)
- GFCI Duplex Receptacle
- Dip Switch Selectable output voltage (100/110/115/120 VAC)
- Remote Control via RJ45
- All-metal body and chassis ensures safe operation and secure mounting regardless of orientation
- LED Indicator Light
- 4-yr warranty when installed with the bundled installation and wire harness
- UL / CUL Certified for Safety
- Temp & Load Controlled cooling fan
- Certifications: UL 458
- DC Input: 12Vdc
- DC Voltage Range: 10.5V to 16.5V
- Operating Temperature: -13F to 105F (-25C to 40C)
- Surge Rating: 150% of continuous power for 3 seconds
- Dimensions: 8.27”W x 3.50”H x 14.01”D
- Product Weight: 10.4 lbs
- EMC Standards: FCC Class B
- Efficiency: 92%
- Standby Recovery: 5 seconds
- Gross Weight: 12 lbs
Availability, Lead Times and Shipping
Please note that ALL Gamber-Johnson and Havis mounting and docking equipment typically takes at least a week to ship. Lead times can often be 3-6+ weeks or longer depending on the exact items purchased. The following is guidance only and changes frequently.
- Basic mounting hardware such as plates or poles: 1-2 weeks to ship
- Vehicle-specific kits or more complex mounting solutions: 2-4 weeks to ship
- Powered docking stations with port replication: 4-8+ weeks to ship.
Please call, email, or chat with us to discuss lead times as it specifically relates to your needs. Expedited shipping methods selected at checkout do not speed up lead times but rather reduce transit time when an order ships.
