Description
Product Features
- Convenient package solution offers the essential elements for any installation

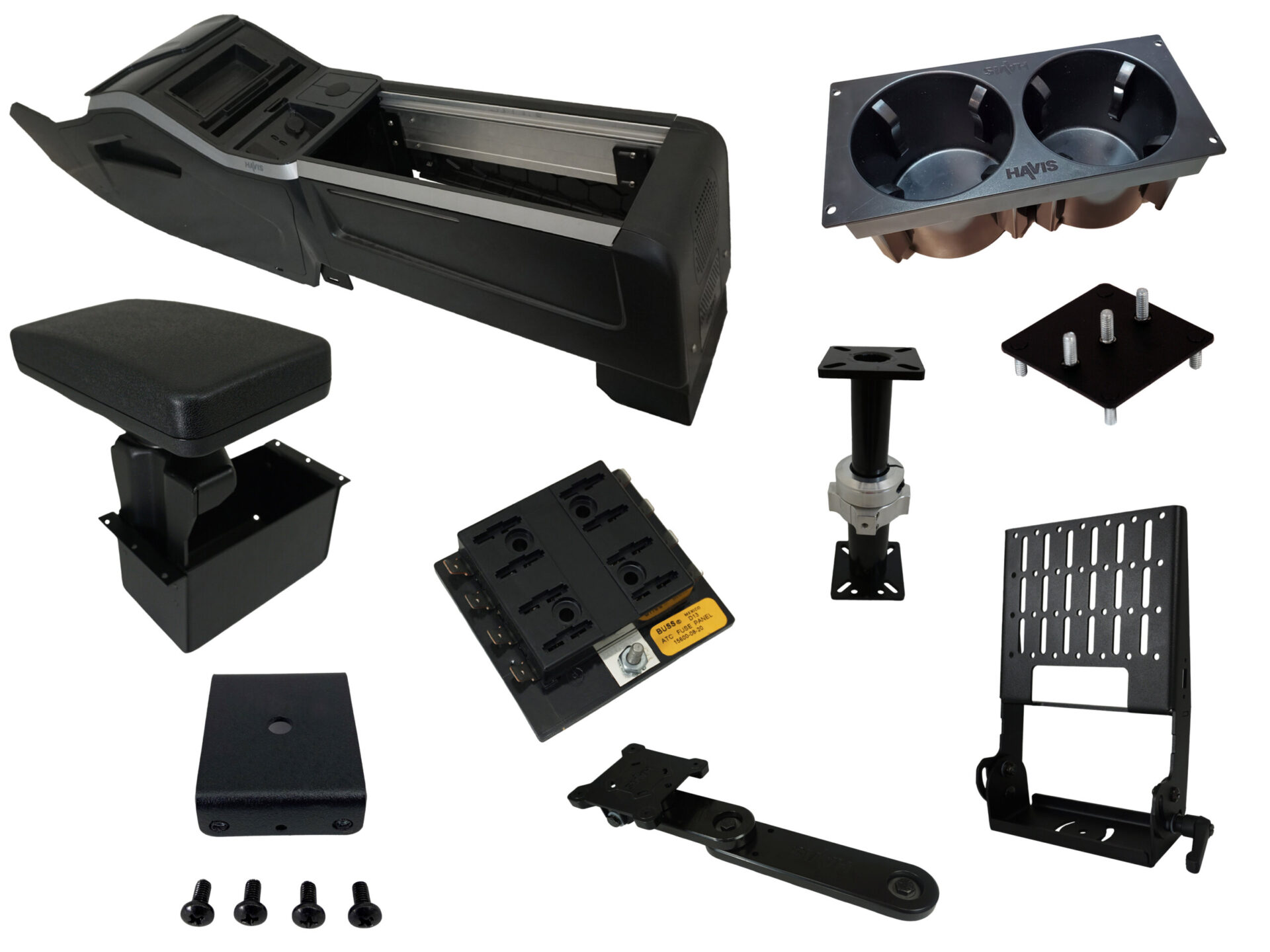

- Package includes Havis C-VSX-1800-BLZR-PM-EV console, CUP2-1004, CMX15600-08-1, C-ARM-113, C-HDM-218, C-HDM-301, C-UMM-103, C-ADP-121, and MD-ARM-0603
- Innovative console design incorporates the strength of steel with a lightweight engineered polycarbonate
- Heavy-duty steel floor-mounting structure provides rigid framework for console
- Polycarbonate chassis mounts to steel frame to offer high degree of strength, impact resistance, and thermal performance
- 16% lower weight than comparable steel consoles
- Integrated printer mount for Brother PocketJet printer stows safely inside the front of the VSX console and creates additional mounting space
- Supports both PocketJet 7 and PocketJet 8 printers (appropriate USB cable is required and sold separately)
- If printer is not being used, leave pre-installed liner in place
- Removable tray in front storage bin can be replaced with optional C-EBX kits for siren light control head options (sold separately): See VSX console accessories
- Additional front section features include slot for holding driver’s licenses or cards, recess for pen storage, optional internal pole mount (C-HDM-218, sold separately), relocated required OEM USB media hub, port for 12V lighter plug, and optional cutout for Havis C-USB-3 dual port
- 10″ available internal mounting space, 18″ total mounting space in 9″W section
- Storage pockets with provisions for dual USB & 12V outlet, removable access panels, and 8″ nut track for side-mounted accessories on driver and passenger sides
- Internal features include equipment tray, mounting provisions for fuse block kits, CG-X, DS-DA-604 hub, Motorola speaker, and integrated cable management system
- CUP2-1004 Self-adjusting double cup holder to fit cups up to 3.5″ in diameter
- CMX15600-08-1 Fuse block kit holds 8 standard automotive blade type fuses up to 30 AMPS (fuses not included)
- Internal Mount flip-up armrest pad with accessory pocket providing more space to officers and their belt-mounted equipment
- Mount your monitor and keyboard to the Heavy-duty pole with height adjust handle, computer monitor, keyboard mount and motion device pre-assembled package for optimal viewing
- Storage pockets with provisions for dual USB & 12V outlet , removable access panels, and 8″ nut track for side-mounted accessories on driver and passenger sides
- Filler plates and equipment brackets for 9″W section included to enclose mounting areas
- Made in the USA with a lifetime warranty
- Vehicle trim levels with OEM console installed require additional purchase of Chevrolet duct, PN 26401329
- 2025 Blazer EV PPV model and later, OEM USB and OEM USB wiring F harness must be purchased separately
- GM USB part number: 527865004. GM wiring F harness part number: 86592838
- OEM USB block off plate included
Product Specs
- Fits: 2024-2025 Chevrolet Blazer EV, fits all SS retail trim levels and PPV version
- Dimensions: 53.16” L x 13.34” W x 16.25” H
- Noncompatible: C-EBX-MOT-1
- Optional bracket: C-PMX-A-SP printer slot cover for non-printer use
- Compatible printers: Brother PocketJet PJ-722, 723, 762, 763 & 773, PJ-822, PJ-823, PJ-862, PJ-863, and PJ-883 Model kits
- Mounting: Use with Brother PocketJet 7 and PocketJet 8 Series printers without battery, which have threaded inserts on printer used for mounting
- Optional Cables: DS-DA-340 Right-angle USB-C connector allows installation of PocketJet 8 Printer into existing Havis PocketJet 7 Printer mounts (sold separately)
- GSM70141 Mini-USB cable used in Havis PocketJet Printer Mounts designed for earlier PocketJet 7 and PocketJet 6 (sold separately)
- Gross Weight: 46 lbs
Availability, Lead Times and Shipping
Please note that ALL Gamber-Johnson and Havis mounting and docking equipment typically takes at least a week to ship. Lead times can often be 3-6+ weeks or longer depending on the exact items purchased. The following is guidance only and changes frequently.
- Basic mounting hardware such as plates or poles: 1-2 weeks to ship
- Vehicle-specific kits or more complex mounting solutions: 2-4 weeks to ship
- Powered docking stations with port replication: 4-8+ weeks to ship.
Please call, email, or chat with us to discuss lead times as it specifically relates to your needs. Expedited shipping methods selected at checkout do not speed up lead times but rather reduce transit time when an order ships.
