Description
Product Features
- Supports Getac’s F120 Tablets in Material Handling, Utility Services, Waste Management and other demanding environments
- Includes standard port replication to connect multiple mission-critical peripherals
- Optional Quad pass-through antenna connection
- Spring-loaded, floating docking connector head ensures connectivity even through heavy vibration
- One-handed docking & undocking
- LPS-140-BW Power Supply Included
- Compact & lightweight while being ultra rugged
- Compatible with Getac’s accessories including the stylus, digitizer pen, hand strap, slim hand strap, and high-capacity battery
- Lock and key supplied for peace of mind theft deterrence
- Integrated cable management system

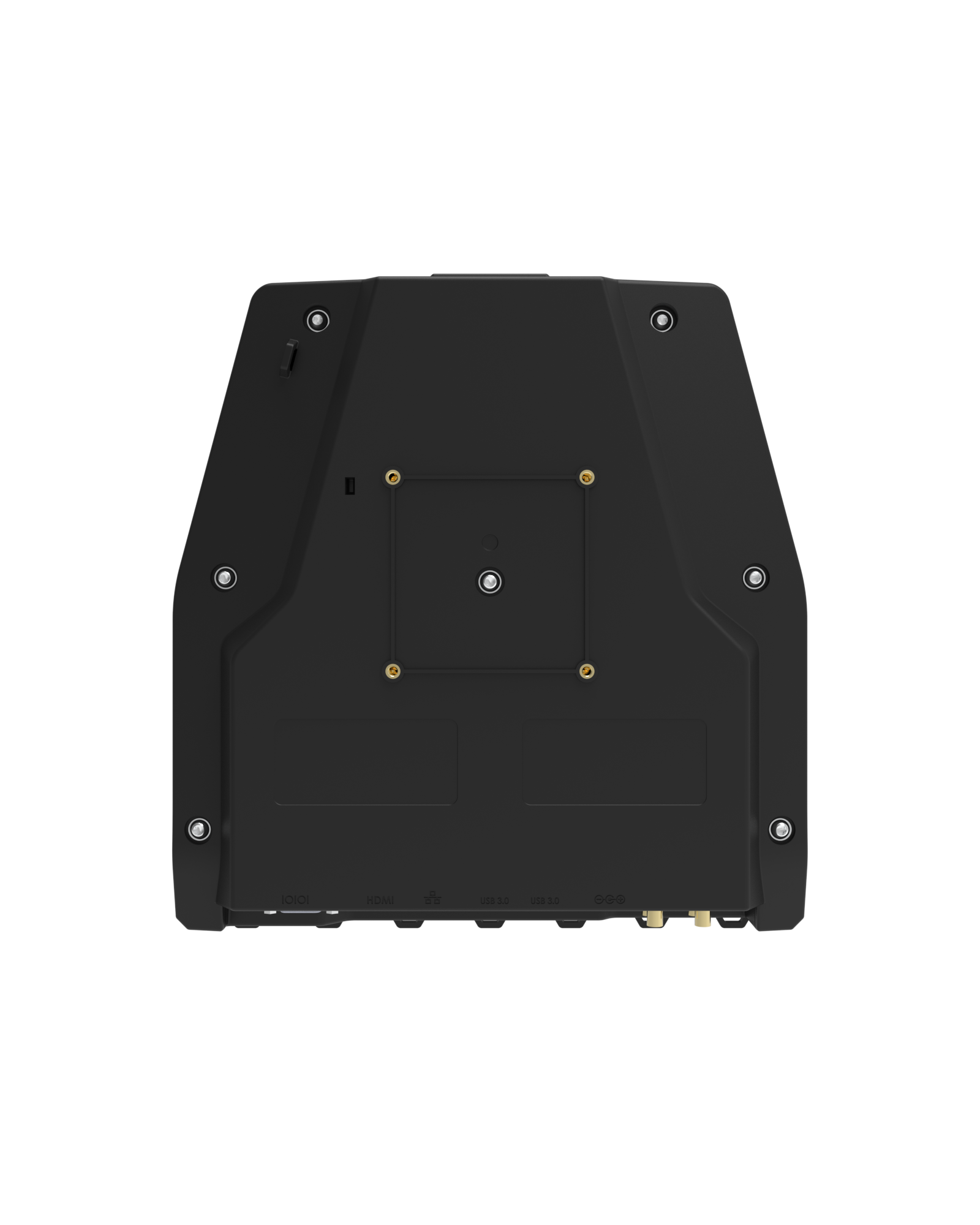

- Integrated VESA 75 mounting pattern
- Polycarbonate construction ensures strength, ruggedness and extreme temperature resistance
- Rounded edges and corners for comfort and safety
- Made in the USA
- Compatible computer: Getac F120 tablet
- Dimensions: 10.5″ (26.7 cm) H X 10.0” (25.4 cm) W X 3.2” (8.1 cm) D
- Certifications and testing:
Vibration Testing: MIL-STD 810H 514.8
Crash Testing: SAE J1455 30mph
Cycle Testing: Dock/undock 30K cycles
Environmental Testing: Hot/Cold operational -21° C to 50° C (-6° F to 122° F); Hot/Cold storage -40° C to 85° C (-40° F to 185° F)
Thermal Shock: MIL-STD 810H, Method 503.7
FCC, CE, CAN ICES (B), RoHS
EMC Testing: EN 55032, EN 50498

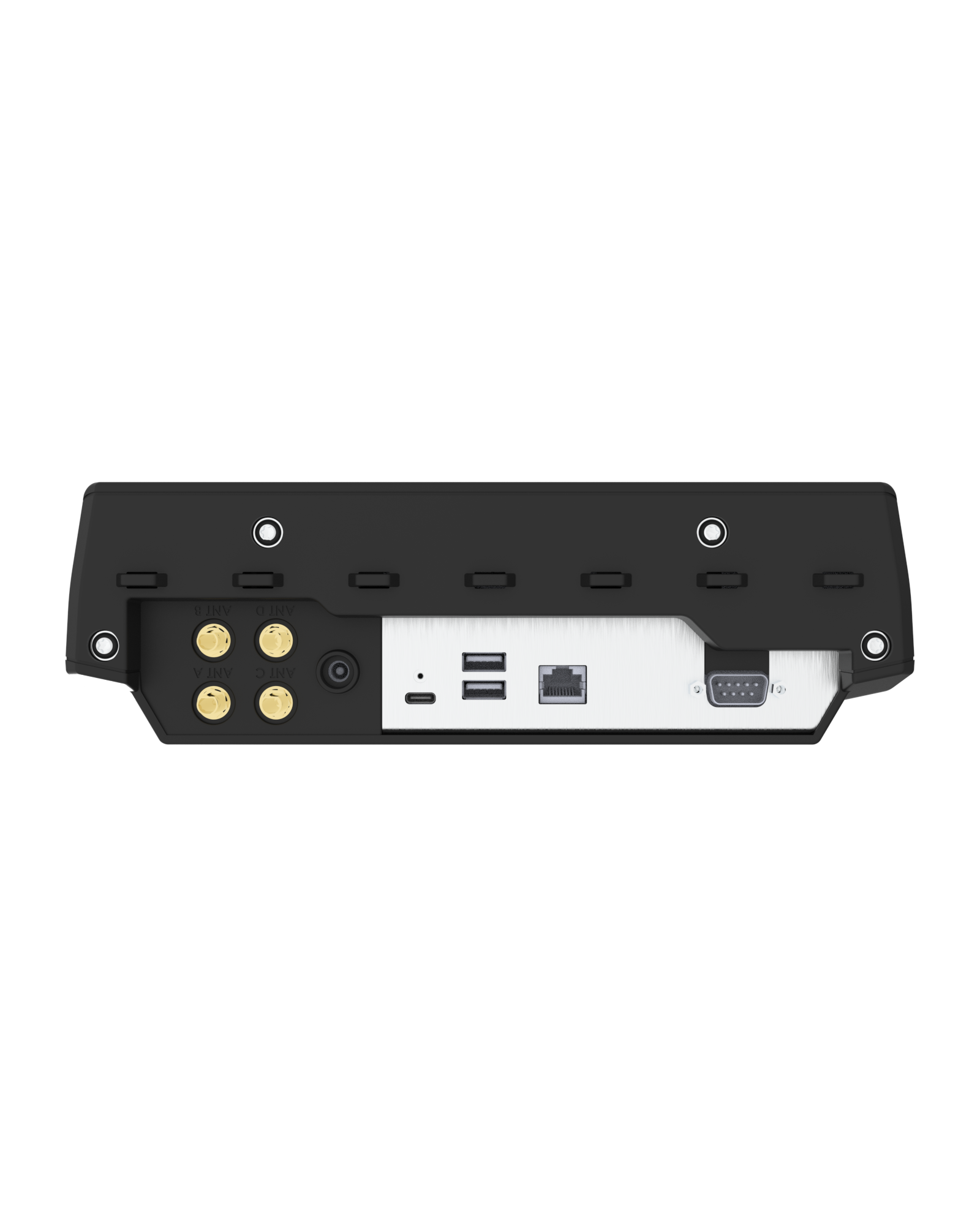

ESD: IEC 10605 - Port Replacation:
Standard:
(1) USB 2.0 (Front facing)
(2) USB 3.2
(1) USB-C 2.0 (Front facing)
(1) USB-C 3.2
(1) RJ45 Ethernet
(1) Powered Serial DB9 (9-Pin) - Product weight: 2.7 lbs.
- Gross Weight: 5.5 lbs
Availability, Lead Times and Shipping
Please note that ALL Gamber-Johnson and Havis mounting and docking equipment typically takes at least a week to ship. Lead times can often be 3-6+ weeks or longer depending on the exact items purchased. The following is guidance only and changes frequently.
- Basic mounting hardware such as plates or poles: 1-2 weeks to ship
- Vehicle-specific kits or more complex mounting solutions: 2-4 weeks to ship
- Powered docking stations with port replication: 4-8+ weeks to ship.
Please call, email, or chat with us to discuss lead times as it specifically relates to your needs. Expedited shipping methods selected at checkout do not speed up lead times but rather reduce transit time when an order ships.
